LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Discharge headlight system (with discharge headlight system)
―  Auto light system (with auto light system)
―  Adaptive front lighting system (AFS) (with AFS)
―  High beam control (HBC) system (with HBC)
―  Headlight auto leveling system (with headlight auto leveling system)
―  Headlight manual leveling system (with headlight manual leveling system)
•  Front fog lights have been adopted. (with front fog lights)
•  Emergency signal system (ESS) has been adopted.
•  LED type side turn lights have been adopted.
•  LED type high-mount brake light has been adopted.
•  Rear fog lights have been adopted. (With rear fog lights)
•  A room light control system has been adopted in which illumination time and illumination level of the interior lights change.

Specification

Item

Spec (W) × quantity
Exterior
Halogen type
Headlight LO bulb
55 × 2
Headlight HI bulb (without running light)
60 × 2
Headlight HI/Running light bulb (with running light)
55 / 15 × 2
Discharge type
Headlight HI/LO bulb
35 × 2
Running light bulb
13 × 2
Parking light bulb
5 × 2
Front turn light bulb
21 × 2
Front fog light bulb
55 × 2
Side turn light (LED)
0.6
Rear turn light bulb
21 × 2
Brake/taillight bulb
21 / 5 × 2
Back-up light bulb
16 × 2
Taillight bulb (Liftgate light)
5 × 2
Rear fog light bulb
21 × 1
High-mount brake light (LED)
2.5
License plate light bulb
5 × 2
Interior
Front map light bulb
8 × 2
Rear map light bulb
8 × 2
Cargo compartment light bulb
5 × 1
Glove compartment light bulb
1.7× 1
Vanity mirror illumination bulb
2 × 2


Structural view

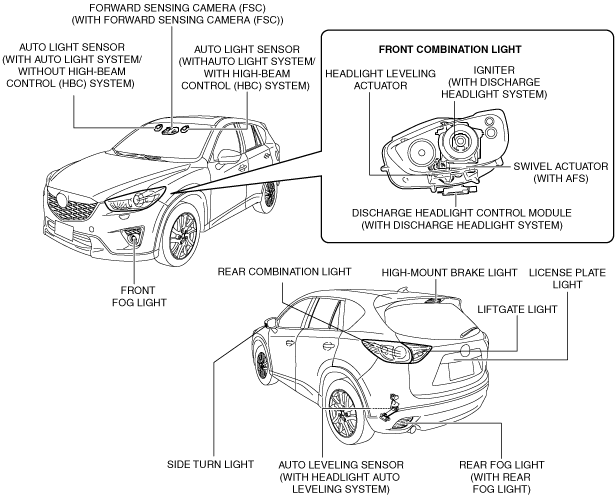

Exterior

ac5wzn00001495

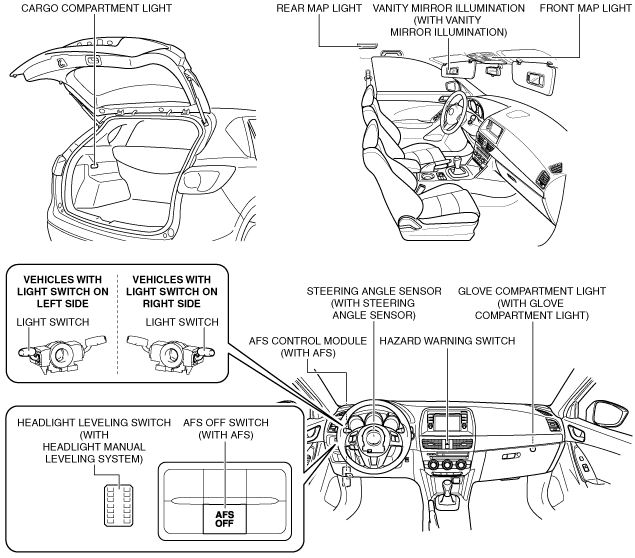

Interior

ac5wzn00001496
