HEADLIGHT AUTO LEVELING SYSTEM

id091800010900


Outline

•  Automatically adjusts the headlight optical axis in response to changes in load and passenger conditions to prevent blinding of oncoming vehicles from headlight glare and to assure a range of visibility.
•  The AFS control module performs headlight auto leveling system fail-safe. (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM) CONTROL MODULE.)

Function

•  The headlight auto leveling system is controlled by the AFS control module.
•  The AFS control module also controls the AFS which changes the optical axis to the direction in which the vehicle is travelling according to the steering wheel operation and vehicle speed while the headlights are turned on. (See AFS (ADAPTIVE FRONT LIGHTING SYSTEM).)

Optical axis adjustment function

•  If the ignition is switched ON (engine on or off) and there is a vehicle height change when the headlights (LO) are illuminated, the AFS control module automatically adjusts the headlight optical axis.
•  The AFS control module controls the optical axis adjustment function based on the following CAN signals.

CAN signal sending module

Signal name
PCM
Vehicle speed signal
Instrument cluster
Ignition switch status signal
Front body control module (FBCM)
Headlight illumination status signal

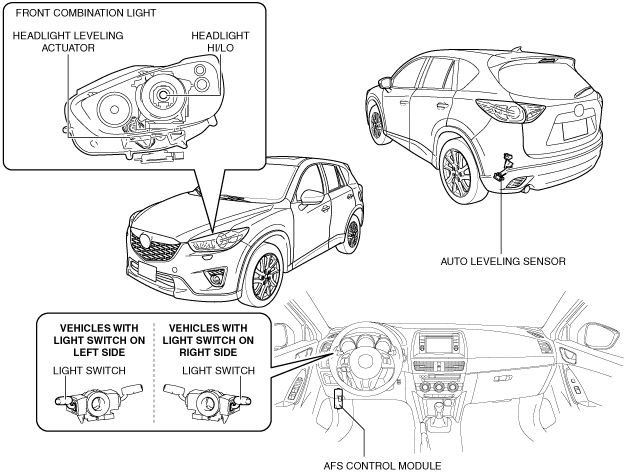

Structural view

ac5wzn00000842

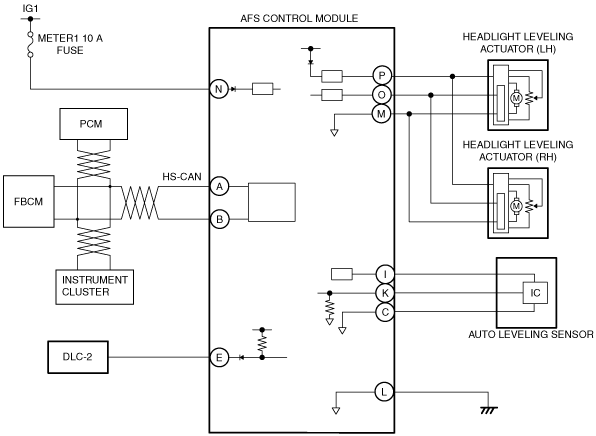

System wiring diagram

ac5wzn00001557

Operation


Optical axis adjustment if vehicle height changes while vehicle is stopped

Operation condition
•  Operates when all of the following conditions are met:
―  Vehicle speed is 0 km/h {0 mph}
―  Ignition switch ON (engine off or on)
―  Headlight LO illumination (headlight LO illumination signal reception)
―  Detects change in vehicle height amount * at specified value or more

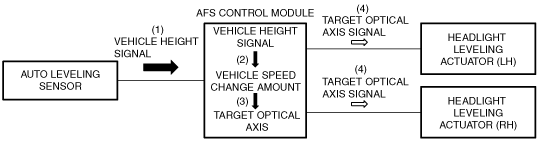

Operation
1.  When the ignition is switched ON (engine off or on), the auto leveling sensor inputs a vehicle height signal to the AFS control module.
2.  When the headlights (LO) turn on, the AFS control module calculates the amount of change in the vehicle height * based on the vehicle height signal.
3.  When the amount of change in the vehicle height * is the specified value or more, the AFS control module calculates the target optical axis based on the calculated amount of change in the vehicle height *.
4.  The AFS control module outputs the calculated target optical axis signal to the headlight leveling actuator.
5.  The headlight leveling actuator drives the motor when the target optical axis signal is input.
ac5wzn00000903


Optical axis adjustment if vehicle height changes while vehicle is moving

Operation condition
•  Operates when all of the following conditions are met:
―  Headlight LO illumination (headlight LO illumination signal reception)
―  Vehicle speed 30 km/h {19 mph} or more
―  Detects change in vehicle speed of 3 km/h {2 mph} or less for continuous period of 25 s
―  Detects change in vehicle height amount * at specified value or more
Operation
1.  While the vehicle is travelling, the auto leveling sensor inputs the vehicle height signal to the AFS control module.
2.  When the headlights (LO) turn on, the AFS control module calculates the amount of change in the vehicle height * based on the vehicle height signal.
3.  When the vehicle speed is 30 km/h {19 mph} or more, the detected change in vehicle speed is 3 km/h {2 mph} or less for a continuous 25 s, and the change in the amount of vehicle height * is the specified value or more, the AFS control module calculates the target optical axis based on the calculated change in the amount of vehicle height *.
4.  The AFS control module outputs the calculated target optical axis signal to the headlight leveling actuator.
5.  The headlight leveling actuator drives the motor when the target optical axis signal is input.
ac5wzn00000903

*  :The change in the amount of vehicle height is the calculated 1 s average value of the vehicle height signal which the AFS control module detects every 0.1 s.
