LIFTGATE LIGHT

id091800011900

Purpose

• The liftgate lights are used to signal the following conditions to vehicles/people at the rear.

― Back-up lights: Signals that the vehicle is backing up.

― Taillights: Signals the presence of the vehicle during nighttime.

Function

• The back-up lights are illuminated in conjunction with the shift operation.

• The taillights are illuminated in conjunction with the light switch operation (TNS).

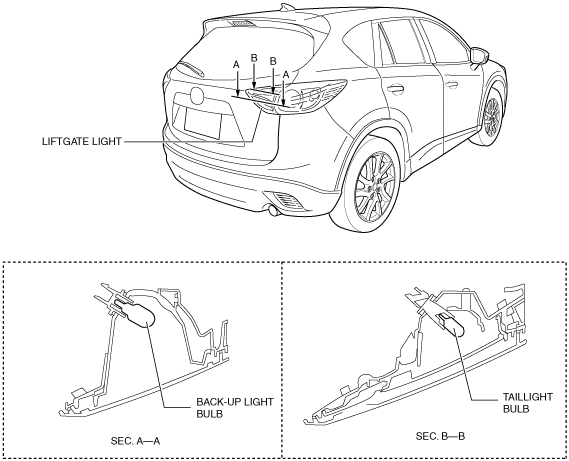

Construction

• The following parts are an integrated structure.

― Back-up light

― Taillight

• A clear lens has been adopted for the liftgate light.

Note

• Fogging or condensation may occur inside the liftgate lights, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the liftgate lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the liftgate lights rises after the back-up light bulb is illuminated and a period of time has elapsed.

ac5wzn00000533

Operation

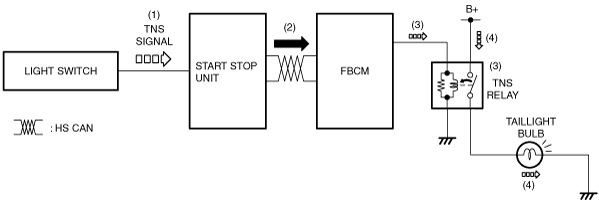

Taillights

1. When the light switch is operated to the TNS position, a TNS signal is input to the start stop unit.

2. The start stop unit sends the TNS signal to the front body control module (FBCM).

3. When the front body control module (FBCM) receives the TNS signal, it turns the TNS relay on.

4. When the TNS relay turns on, the taillight bulbs are illuminated.

ac5wzn00001360

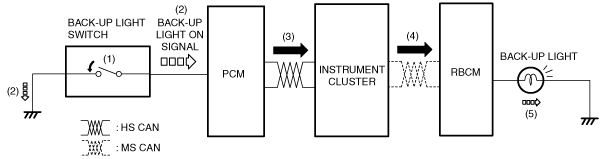

Buck-up lights (MTX)

1. When the shift lever is operated to the R position, the back-up light switch is turned on.

2. When the back-up light switch is turned on, a back-up light on signal is input to the PCM.

3. The PCM sends the back-up light switch on signal to the instrument cluster.

4. The instrument cluster sends the back-up light switch on signal to the rear body control module (RBCM).

5. When the rear body control module (RBCM) receives the back-up light switch on signal, the back-up lights are illuminated.

ac5wzn00001361

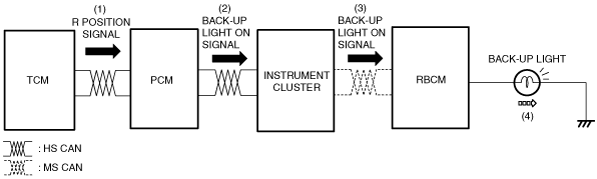

Buck-up lights (ATX)

1. When the selector lever is operated to the R position, the TCM sends an R position signal to the PCM.

2. When the PCM receives the R position signal, it sends a back-up light on signal to the instrument cluster.

3. The instrument cluster sends the back-up light switch on signal to the rear body control module (RBCM).

4. When the rear body control module (RBCM) receives the back-up light on signal, the back-up lights are illuminated.

ac5wzn00001415

Fail-safe

• Function not equipped.
