CARGO COMPARTMENT LIGHT

id091800012600

Purpose

• The cargo compartment light illuminates the cargo room interior when the liftgate is opened.

Function

• When the liftgate is opened, illuminates by the cargo room light switch turning on.

Construction

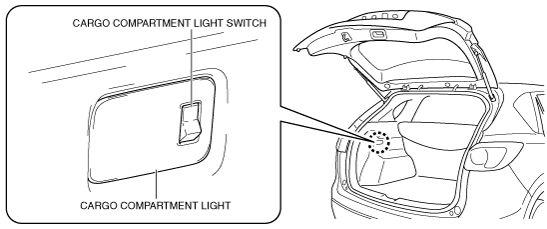

• The cargo room light is installed to the trunk side trim.

ac5wzn00000445

Operation

1. When the liftgate opens, the liftgate latch switch turns on and a liftgate light switch on signal is input to the rear body control module (RBCM).

2. When the rear body control module (RBCM) inputs the liftgate latch switch, electric current flows to the cargo room light.

3. When the cargo room light switch turns on, electric current flows to the cargo light bulb.

4. When electric current flows to the cargo room light bulb, the cargo room light bulb illuminates.

ac5wzn00001365

Fail-safe

• Function not equipped.
