TURN SIGNAL/HAZARD WARNING INDICATOR LIGHTS

id091800013500

Purpose

• Notifies the driver that a turn light, the hazard warning lights are flashing.

Function

• Flashes according to the turn switch and hazard warning switch operations.

Construction

• Displayed in the instrument cluster.

ac5uun00000536

Operation

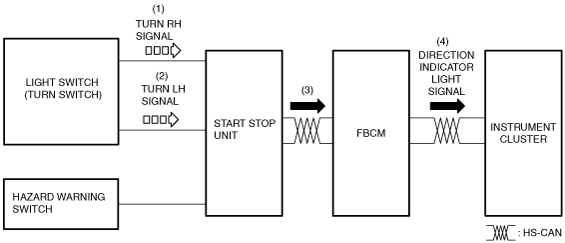

Turn system

1. When the turn switch is operated to the RH position, a turn RH signal is input to the start stop unit.

2. When the turn switch is operated to the LH position, a turn LH signal is input to the start stop unit.

3. The start stop unit sends the turn RH or LH signal to the front body control module (FBCM).

4. The front body control module (FBCM) sends the turn RH or LH signal to the instrument cluster as a direction indicator light signal.

5. When a direction indicator light signal is received, the instrument cluster flashes the direction indicator light.

ac5wzn00001337

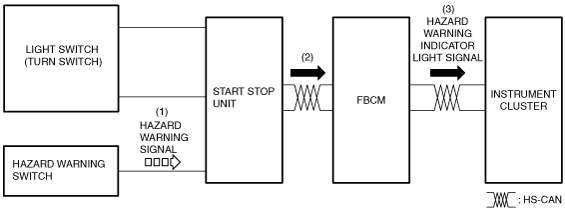

Hazard system

1. When the hazard switch is turned on, a hazard signal is input to the start stop unit.

2. The start stop unit sends a hazard signal to the front body control module (FBCM).

3. The front body control module (FBCM) sends the hazard signal to the instrument cluster as a hazard warning flashing signal.

4. When the hazard warning flash signal is received, the instrument cluster flashes the hazard warning lights.

ac5wzn00001339

Fail-safe

• Function not equipped.
