HEADLIGHT HIGH-BEAM INDICATOR LIGHT

id091800013600

Purpose

• Notifies the user that the headlights (HI) are illuminated.

Function

• Illuminates when the headlight (HI) or parking illumination conditions are met.

Construction

• Displayed in the instrument cluster.

ac5uun00000686

Operation

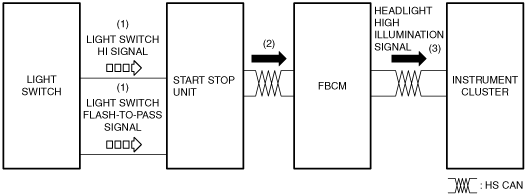

1. When the light switch is operated to the HI or parking position, a light switch HI or parking signal is input to the start stop unit.

2. The start stop unit sends the light switch HI or parking signal to the front body control module (FBCM).

3. The front body control module (FBCM) sends the light switch HI signal to the instrument cluster as a headlight HI illumination signal.

4. When the instrument cluster receives the headlight HI illumination signal, it illuminates the headlight high-beam indicator light.

ac5uun00000687

Fail-safe

• Function not equipped.
