SIDE TURN LIGHT REMOVAL/INSTALLATION

id091800811500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.)

(2)  Outer mirror garnish (upper side) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

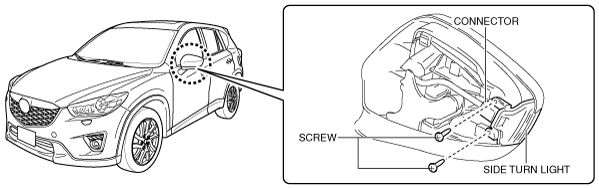

3.  Remove the screws.

ac5wzw00003031

4.  Disconnect the connector.

5.  Remove the side turn light.

ac5wzw00003032

6.  Install in the reverse order of removal.
