STEERING ANGLE SENSOR INSPECTION

id091800813400

1.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

2.  Connect the plus (+) end of a tester to steering angle sensor terminal A and the minus (-) end of the tester to terminal B (GND).

ac5wzw00000844

3.  Switch the ignition ON (engine off or on).

4.  Turn the steering wheel to the left and right.

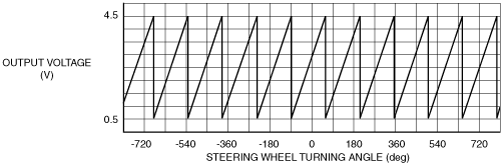

5.  Verify that the voltage from steering angle sensor terminal A to B (GND) is as indicated in the table.

ac5wzw00003009

•  If the voltage can be verified as indicated in the table, go to the next step.

•  If the voltage is not as indicated in the table, replace the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)

6.  Switch the ignition to off.

7.  Connect the plus (+) end of a tester to steering angle sensor terminal C and the minus (-) end of the tester to terminal B (GND).

ac5wzw00000844

8.  Switch the ignition ON (engine off or on).

9.  Turn the steering wheel to the left and right.

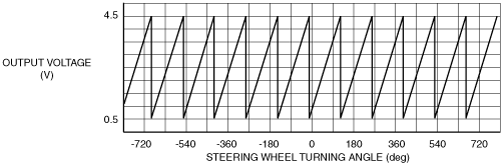

10.  Verify that the voltage from steering angle sensor terminal C to B (GND) is as indicated in the table.

ac5wzw00003010

•  If the voltage is not as indicated in the table, replace the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION.)
