REAR WASHER NOZZLE ADJUSTMENT

id091900802300

Caution

•  If the nozzle angle is adjusted with excessive force by strongly inserting a needle or similar thin tool into the injection nozzle of rear washer nozzle, it could damage the nozzle internally. When adjusting the nozzle, be careful not to apply excessive force.

Note

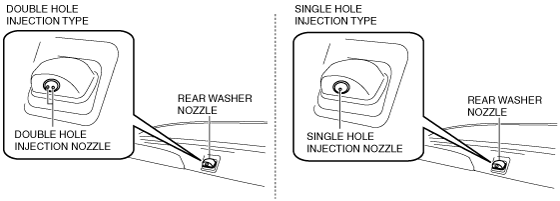

•  There are two types of rear washer nozzles; one with two injection nozzle holes, and the other with one hole.

ac5wzw00006783

Double Hole Injection Type

1.  Insert a needle or similar thin tool into the injection nozzle of the rear washer nozzle and adjust the area where washer fluid injected from the rear washer nozzle is sprayed as shown in the figure.

ac5wzw00001640

ac5wzw00006784

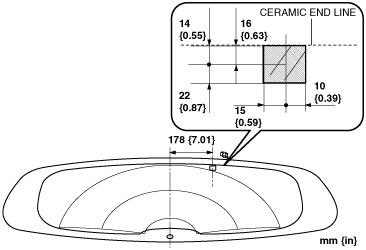

Single Hole Injection Type

1.  Insert a needle or similar thin tool into the injection nozzle of the rear washer nozzle and adjust the area where washer fluid injected from the rear washer nozzle is sprayed as shown in the figure.

ac5uuw00003314

ac5uuw00003315
