STEERING SWITCH

id092000010500


Purpose, Function

•  Operation of the audio system and change of the trip computer system display are possible without a change in driving posture.

Construction

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.

Without Bluetooth system

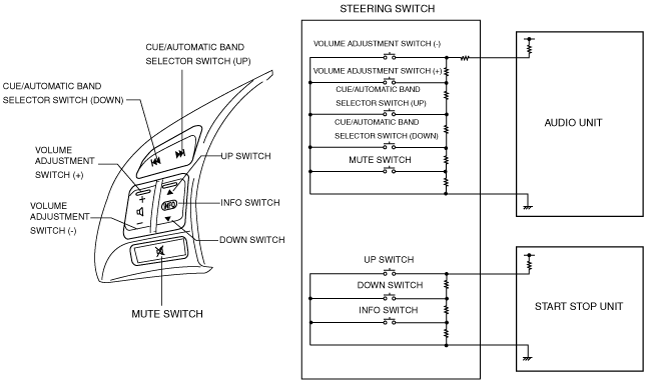

•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO switch, up switch, down switch, and mute switch.
ac5wzn00002174


With Bluetooth system

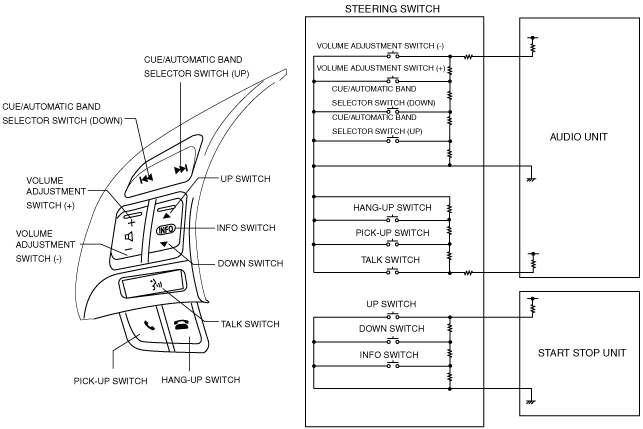

•  The steering switch consists of a volume adjustment (+) or (-) switch, cue/automatic band selector (up) or (down) switch, INFO switch, up switch, down switch, TALK switch, PICK-UP switch, and HANG-UP switch.
ac5wzn00002175


Operation

Switch name

Operation
Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cue of CD tracks and selection of radio band are possible.
Mute switch (Without Bluetooth system)
Audio volume can be muted. Pressing again after muting returns to previous volume level.
INFO switch
Instrument cluster display can be changed. Refer to LIQUID CRYSTAL DISPLAY (LCD) for display content.
Up/down switch
Instrument cluster display can be changed. Refer to LIQUID CRYSTAL DISPLAY (LCD) for display content.
TALK switch (With Bluetooth system)
Launches the Bluetooth system.
Pick-up switch (With Bluetooth system)
Receives a phone call.
Hang-up switch (With Bluetooth system)
Hangs up a phone call.


Fail-safe

•  Function not equipped.
