AUDIO AMPLIFIER


id092000011200


Purpose, Function

•  The audio signal (analog voltage waveform) output from the unit equipped on the vehicle is converted into a digital pulse. The converted digital pulse signal is amplified and sent to the speakers.

Function

•  When the audio amplifier receives a voltage increase request signal from the PCM, output current to the speakers is controlled at 10 A or less to assure input voltage to the DC-DC converter when the engine is re-started by the i-stop control. (With i-stop system)

Construction

•  The audio amplifier is placed in the front side trim (RH).
ac5jjn00001056

Terminal Layout and Signal

L.H.D.

Terminal

Signal

1A
1B
1C
1D
1E
Front door speaker input LH (-)
1F
Front door speaker input LH (+)
1G
Front door speaker input RH (-)
1H
Front door speaker input RH (+)
1I
Rear door speaker input LH (-)
1J
Rear door speaker input LH (+)
1K
Rear door speaker input RH (-)
1L
Rear door speaker input RH (+)
1M
1N
1O
AudioPilot ®2 microphone (+)
1P
AudioPilot ®2 microphone (-)
2A
D-pillar speaker (+)
2B
D-pillar speaker (-)
2C
Tweeter output RH (+)
2D
Body select
2E
Tweeter output RH(-)
2F
AMP control (SW B+)
2G
Tweeter output LH (-)
2H
Vehicle speed signal
2I
Tweeter output LH (+)
2J
AudioPilot ®2
2K
Rear door speaker output RH (-)
2L
i-stop control*
2M
Rear door speaker output RH (+)
2N
2O
Rear door speaker output LH (+)
2P
Rear door speaker output LH (-)
3A
B+
3B
Ground
3C
Front door speaker output RH (+)
3D
Front door speaker output RH (-)
3E
Front door speaker output LH (-)
3F
Front door speaker output LH (-)
3G
Front door speaker (+)
3H
Front door speaker (-)

*  :With i-stop system

R.H.D.

Terminal

Signal

1A
1B
1C
1D
1E
Front door speaker input RH (-)
1F
Front door speaker input RH (+)
1G
Front door speaker input LH (-)
1H
Front door speaker input LH (+)
1I
Rear door speaker input RH (-)
1J
Rear door speaker input RH (+)
1K
Rear door speaker input LH (-)
1L
Rear door speaker input LH (+)
1M
1N
1O
AudioPilot ®2 microphone (+)
1P
AudioPilot ®2 microphone (-)
2A
D-pillar speaker (+)
2B
D-pillar speaker (-)
2C
Tweeter output LH (+)
2D
Body select
2E
Tweeter output LH(-)
2F
AMP control (SW B+)
2G
Tweeter output RH (-)
2H
Vehicle speed signal
2I
Tweeter output RH (+)
2J
AudioPilot ®2
2K
Rear door speaker output LH (-)
2L
i-stop control
2M
Rear door speaker output LH (+)
2N
2O
Rear door speaker output RH (+)
2P
Rear door speakeroutput RH (-)
3A
B+
3B
Ground
3C
Front door speaker output LH (+)
3D
Front door speaker output LH (-)
3E
Front door speaker output RH (-)
3F
Front door speaker output RH (-)
3G
Front door speaker (+)
3H
Front door speaker (-)


Operation

Note
•  For the audio amplifier operation, refer to the AUDIO SYSTEM.

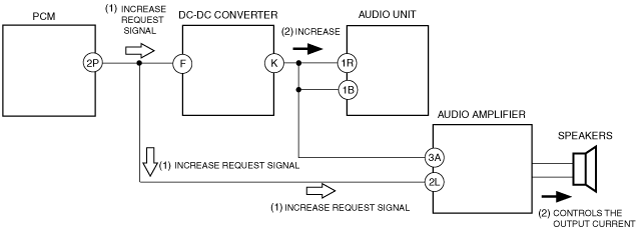

Engine restart by i-stop (With i-stop system)

1.  The PCM sends a boost request signal to the DC-DC converter and audio amplifier when the engine is restarted by the i-stop control.

2.  The DC-DC converter increases the electric current voltage to the audio unit, and when the audio amplifier receives the increase request signal, it controls the output current to the speakers at 10 A or less.

Note
•  If the audio amplifier performs current control when the audio volume is 50 or more, the audio volume may decrease for approx. 0.3 s.

ac5wzn00000989


Fail-safe

•  Function not equipped.
