SPEAKER [WITH Bose®]

id092000110500

Note
•  The speaker magnet differs depending on the vehicle’s period of manufacture.

Rear door speaker

ac5wzn00002634

Purpose

•  Converts the audio signal from the audio unit to sound.
•  High quality sound is provided for the driver and passengers.

Function

•  Full-range speakers, which can output wide-range sound from low to high frequency, have been adopted.
•  A better sound effect and clear sound have been realized by using tweeters (speaker for upper register sound range) which differ the range of the output sound and woofer (speaker for lower register sound range).

Specification

Item

Front door speaker

Rear speaker

Tweeter

Front center speaker

D-pillar speaker
Rated impedance
(ohm)
1.25
3.7
3.24 — 3.96
3.24 — 3.96
3.24 — 3.96
Size
(mm {in})
225 {8.86}
133 {5.24}
80 {3.1}
80 {3.1}
80 {3.1}


Construction

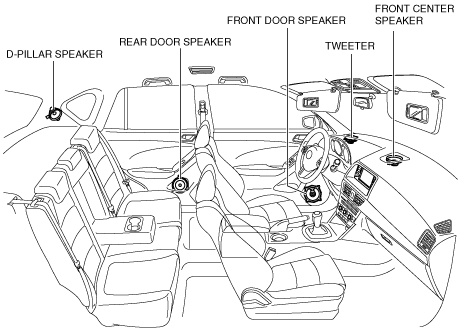

ac5uun00000898
•  Rear door speaker
Type A
―  A cone-shaped dynamic speaker has been adopted for each speaker.
―  Pulp for the cone material and a neodymium magnet have been adopted.
Type B
―  A cone-shaped dynamic speaker has been adopted for each speaker.
―  A weight reduction was realized by using pulp for the cone material and adopting a strontium barium ferrite magnet.
•  A better sound effect is achieved by the use of speakers which differ the range of the output sound.
―  Front door speaker (speaker for deep bass sound range)
―  Rear door speaker (speaker for all sound ranges)
―  Tweeter (speaker for medium-to-high-sound range)
―  Front center speaker (speaker for medium-to-high-sound range)
―  D-pillar speaker (speaker for medium-to-high-sound range)

Operation

•  For the speaker operation, refer to the SPEAKER [WITHOUT Bose®].

Fail-safe

•  Function not equipped.
