MAIN FUSE


id092100800000


Purpose

•  If electric current of the specified value or more flows to each fuse, the fuse melts due to heat generation to protect the systems and parts downstream of the fuse.

Function

•  If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

Construction

•  Installed to the battery terminal (+).

SKYACTIV-G 2.0, SKYACTIV-G 2.5

ac5wzn00001561

SKYACTIV-D 2.2

European (L.H.D.) specs., General (L.H.D.) specs., China specs.

ac5wzn00001873

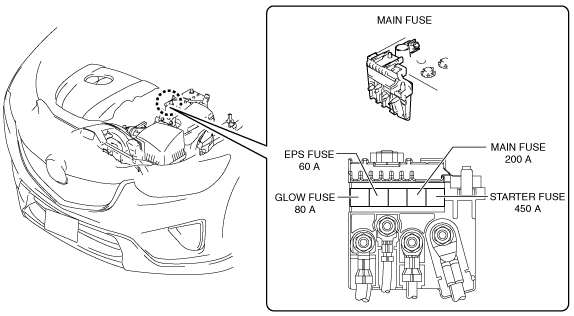

Except European (L.H.D.) specs., General (L.H.D.) specs., China specs.

ac5wzn00001872


Operation

1.  If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

2.  Interrupts electric current flow downstream of the fuse.


Fail-safe

•  Function not equipped.
