POWER SYSTEMS

id092100960000

Outline

• System in which electric current from the battery supplies power to each electrical part.

• There are mainly three types of electric power supply as follows, which are divided into system-supplied power and power used by parts.

― Supply of direct power from battery

― Supply of power by switching ignition ON (engine off)

― Supply of power by switching ignition ON (engine on)

Specification

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Component parts	Specification
Relay and fuse block	Wiring harness-integrated type
Fuse block	Wiring harness-integrated type
Relay box	Wiring harness-integrated type
Main fuse	DCDC fuse rating	50 A
	EPS fuse rating	60 A
	MAIN fuse rating	200 A
	STARTER fuse rating	250 A
Push button start	Durable number of times	200,000 time
Push button start	Type	ON/OFF switch
Accessory socket	Rated voltage	DC 12 V
Accessory socket	Rated load	10 A

SKYACTIV-D 2.2

Component parts	Specification
Relay and fuse block	Wiring harness-integrated type
Fuse block	Wiring harness-integrated type
Relay box	Wiring harness-integrated type
Main fuse	GLOW fuse rating	80 A
	EPS fuse rating	60 A
	PTC fuse rating	100 A
	MAIN fuse rating	200 A
	STARTER fuse rating	450 A
Push button start	Durable number of times	200,000 time
Push button start	Type	ON/OFF switch
Accessory socket	Rated voltage	DC 12 V
Accessory socket	Rated load	10 A

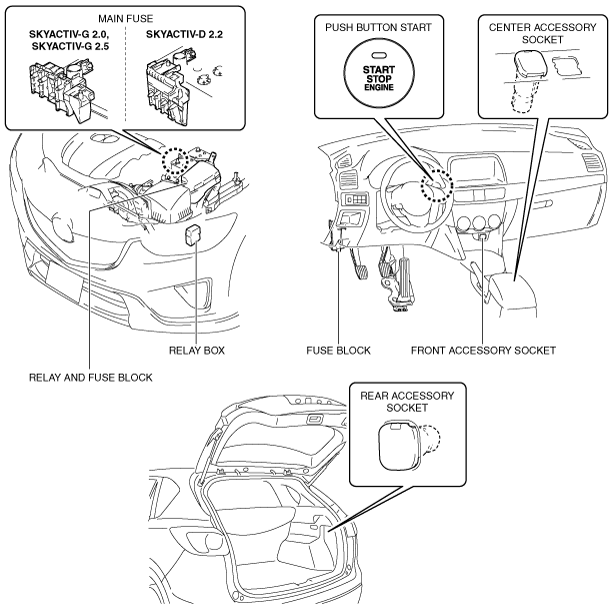

Structural view

ac5wzn00002331
