INSTRUMENTATION/DRIVER INFO.

id092200018200


Outline

•  An LCD has been adopted to the instrument cluster which displays the ambient temperature, trip computer, and odometer/tripmeter. (without TFT LCD)
•  A TFT LCD has been adopted to the instrument cluster which displays the door-ajar warning light, trip computer, and warning messages. (with TFT LCD)
•  A tachometer with a striped zone which indicates that the engine is running at excess engine speed has been adopted. (with striped zone)
•  A rear vehicle monitoring (RVM) system has been adopted which notifies the driver of vehicles approaching from behind and warns the driver if the driver tries to change lanes to the side of the approaching vehicle. (with rear vehicle monitoring (RVM) system)
•  A blind spot monitoring (BSM) system has been adopted which notifies the driver of vehicles approaching from behind on the left or right adjacent lanes in the driver's blind spot, and warns the driver if the driver tries to change lanes to the side of the approaching vehicle. (with blind spot monitoring (BSM) system)
•  A parking assist system has been adopted which detects obstructions in the blind spot (vehicle front/rear/corners) to a wide extent using ultrasonic sensors and notifies the driver of the obstructions. (with parking sensor system)
•  A lane departure warning system (LDWS) has been adopted which recognizes vehicle lane lines on the road using the forward sensing camera (FSC) installed to the windshield and notifies the driver if the vehicle may depart from its lane unbeknownst to the driver. (with lane departure warning system (LDWS))
•  A clock has been adopted to the LCD which displays the current time, passenger/rear seat belt warning light, and front passenger air bag deactivation indicator light. (with manual A/C)

Specification

Item

Specification
Instrument cluster
Warning lights
Brightness level
(cd/m2)
200―300
Light source
LED
Indicator lights
Brightness level
(cd/m2)
85―135
Light source
LED
Warning beep
Oscillation frequency
(Hz)
1,000―2,200
Output sound pressure
(dB)
46.0―72.5
Display sound
Oscillation frequency
(Hz)
1,700―1,800
Output sound pressure
(dB)
50.0―60.0
Speedometer
System
Stepping motor type
Display
Analog needle
Input signal communication system
CAN system
Tachometer
System
Stepping motor type
Display
Analog needle
Input signal communication system
CAN system
Low engine coolant temperature indicator light/High engine coolant temperature warning light
Operation
(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED).)
Input signal communication system
CAN system

Instrument cluster
Fuel gauge
System
LCD
Input signal source
Fuel gauge sender unit
Remaining fuel quantity (L {US gal, lmp gal}) in fuel tank
Segment indication number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2WD
6—8 {1.6—2.1, 1.4—1.7}
8—10 {3.0—2.6, 2.0—2.1}
10—12 {2.7—3.1, 2.2—2.6}
12—14 {3.2—3.6, 2.7—3.0}
14—16 {3.7—4.2, 3.1—3.5}
16—18 {4.3—4.7, 3.6—3.9}
18—22 {4.8—5.8, 4.0—4.8}
22—25 {5.9—6.6, 4.9—5.4}
25—29 {6.7—7.6, 5.5—6.3}
29—33 {7.7—8.7, 6.4—7.2}
33—37 {8.8—9.7, 7.3—8.1}
37—40 {9.8—10.0, 8.2—8.7}
40—44 {10.6—11.6, 8.8—9.6}
44—48 {11.7—12.6, 9.7—10.0}
48—56 {13—14, 11—12}
4WD
6—8 {1.6—2.1, 1.4—1.7}
8—10 {3.0—2.6, 2.0—2.1}
10—12 {2.7—3.1, 2.2—2.6}
12—14 {3.2—3.6, 2.7—3.0}
14—16 {3.7—4.2, 3.1—3.5}
16—18 {4.3—4.7, 3.6—3.9}
18—22 {4.8—5.8, 4.0—4.8}
22—26 {5.9—6.8, 4.9—5.7}
26—30 {6.9—7.9, 5.8—6.5}
30—34 {8.0—8.9, 6.6—7.4}
34—38 {9.0—10.0, 7.5—8.3}
38—42 {10.1—11, 8.4—9.2}
42—46 {11.1—12.1, 9.3—10.0}
46—50 {12.2—13.2, 10.2—10.9}
50—58 {14—15, 11—12}
Remaining fuel level (L {US gal, lmp gal}) when fuel tank level warning light illuminates
2WD
Approx. 9 {2, 2}
4WD
Invalid remaining fuel level. (L {US gal, lmp gal})
2WD
Approx. 1.36 {0.359, 0.299}
4WD
Approx. 0.45 {0.12, 0.099}
Odometer
System
LCD
Display area
0—999,999
Minimum display unit
(km {mile})
1 {0.6}
Input signal communication system
CAN system
Tripmeter
System
LCD
Display area
Returns to 0.0 from 999.9, calculation continues
Minimum display unit
(km {mile})
0.1 {0.06}
Input signal communication system
CAN system
Horn
Type A
Oscillation frequency
(Hz)
390―440
Waveform
Spiral
Type B
Oscillation frequency
(Hz)
385―425
Waveform
Spiral

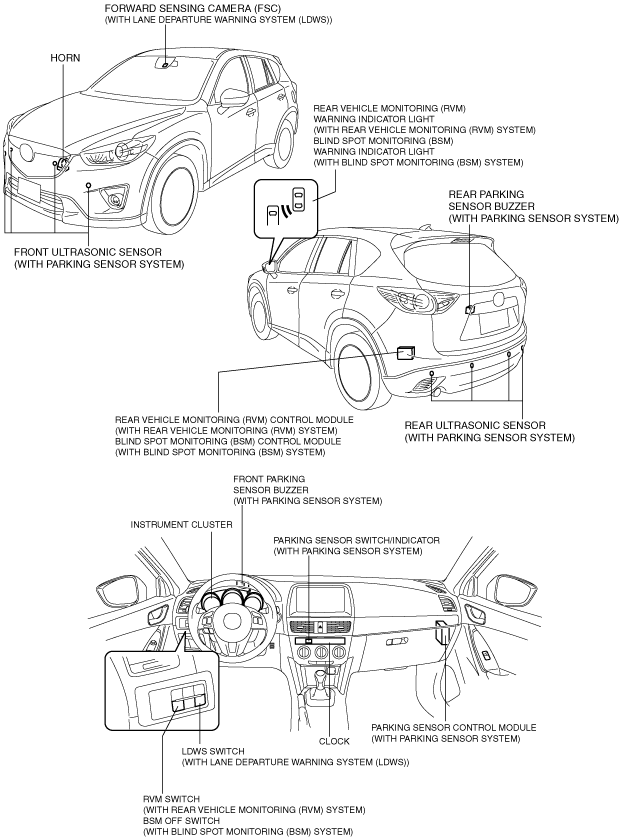

Structural view
