PARKING SENSOR SWITCH
id092200024600
Purpose
• The parking sensor system can be optionally switched between operable and inoperable.
Function
• The switch operation signal is sent to the parking sensor control module.
Construction

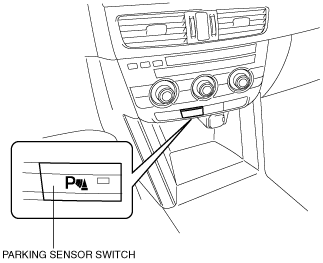

• The parking sensor switch is built into the climate control unit.
Operation
1. When the parking sensor switch operates, the switch operation signal is sent to the parking sensor control module.
2. When the parking sensor control module receives the parking sensor switch operation signal, it switches the parking sensor system on/off.
Fail-safe
• Function not equipped.
