BLIND SPOT MONITORING (BSM) CONTROL MODULE

• Controls the blind spot monitoring (BSM) system.

• The BSM control module emits microwaves to detect an oncoming vehicle's position and speed information via the reflected microwaves.

Note

• The detection ability of the blind spot monitoring (BSM) control module has limitations. In the following cases, the detection ability may lower and the system may not operate normally.

― The rear bumper near the blind spot monitoring (BSM) control module has become deformed.

― Snow, ice or mud adheres to the blind spot monitoring (BSM) control module on the rear bumper.

― Under bad weather conditions such as rain, snow and fog.

• Under the following conditions, the blind spot monitoring (BSM) control module cannot detect target objects or it may be difficult to detect them.

― Stationary objects on a road or a road side such as small, two-wheeled vehicles, bicycles, pedestrians, animals, and shopping carts.

― Vehicle shapes which do not reflect radar waves well such as empty trailers with a low vehicle height and sports cars.

• Turn off the system while pulling a trailer or while an accessory such as a bicycle carrier is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the radar will be blocked causing the system to not operate normally.

• The BSM system is controlled based on the detected vehicle position and speed information.

• A self-diagnostic function has been adopted.

• The BSM control module and radar have been integrated.

• Microwaves are emitted from the radar.

• Two control modules are positioned on the left and right sides of the body inside the rear bumper.

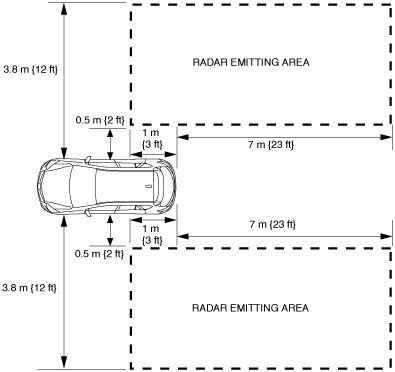

• The BSM control module emits microwaves to the vehicle rear to detect the obstruction via the reflected microwaves.

• Cross-directional: 1 m {3 ft} toward the front of the vehicle, and 7 m {23 ft} toward the rear of the vehicle from the rear end of the vehicle (total, 8 m {26 ft}).

• Lateral direction: 0.5—3.8 m {2—12 ft} from the side of the vehicle (total, 3.3 m {11 ft}).

ac5jjn00000792

• When the vehicle is cornering, such as turning into an intersection, the shape of the warning area on the inner side changes.

― Cross-directional: Length of the vehicle rear changes depending on the steering angle.

― Lateral direction: Angle of the warning area changes along the vehicle’s turning orbit.

DTC No.	Fail-safe function
B118C:11	BSM is stopped.
B118C:15	BSM is stopped.
B118D:11	BSM is stopped.
B118D:15	BSM is stopped.
U0001:88	BSM is stopped.
U0100:00	BSM is stopped.
U0131:00	BSM is stopped.
U0155:00	BSM is stopped.
U0214:00	BSM is stopped.
U0232:00	BSM is stopped.
U0233:00	BSM is stopped.
U0401:68	BSM is stopped.
U0420:68	BSM is stopped.
U0423:68	BSM is stopped.
U0515:68	BSM is stopped.
U0533:68	BSM is stopped.
U0534:68	BSM is stopped.
U3000:01	BSM is stopped.
U3000:09	BSM is stopped.
U3000:4A	Not equipped.
U3000:97	Not equipped.
U3003:16	BSM is stopped.
U3003:17	BSM is stopped.
