•  The blind spot monitoring (BSM) system can be turned on or off optionally by the driver.

•  The switch operation signal is sent to the instrument cluster.

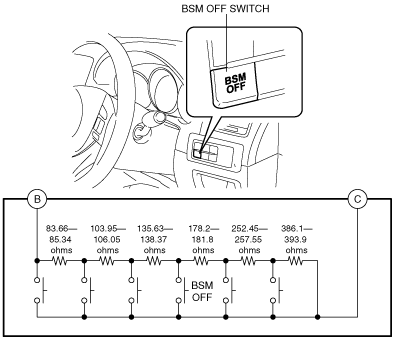

•  The BSM OFF switch is built into the cluster switch.

•  The resistance is built into each switch.

1.  When the BSM OFF switch operates, the switch operation signal is sent to the instrument cluster.

2.  The instrument cluster sends a BSM OFF switch operation signal to the BSM control module based on the received voltage value (switch operation signal).

3.  The BSM control module switches the BSM system on/off when it receives the BSM OFF switch operation signal from the instrument cluster.

ac5wzn00000890

•  Function not equipped.
