TORQUE BOX REMOVAL [PANEL REPLACEMENT]

id098008607100

Symbol Mark

ac5wzb00000054

Removal Procedure

1.  Drill the 19 locations indicated by (A) shown in the figure.

Note

•  When drilling the 19 locations indicated by (A) shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

ac5wzb00000055

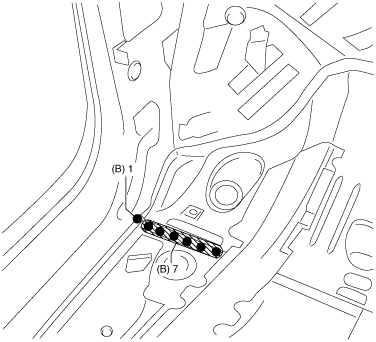

2.  Drill the 8 locations indicated by (B) from the inside shown in the figure.

ac5wzb00000056

3.  Remove the torque box.
