REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

ac5wzb00000074

Removal Procedure

Caution

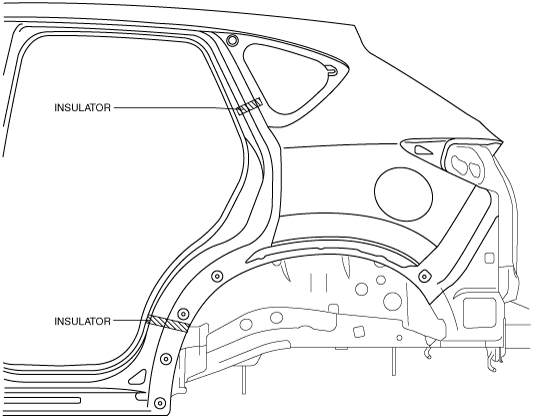

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

ac5wzb00000234

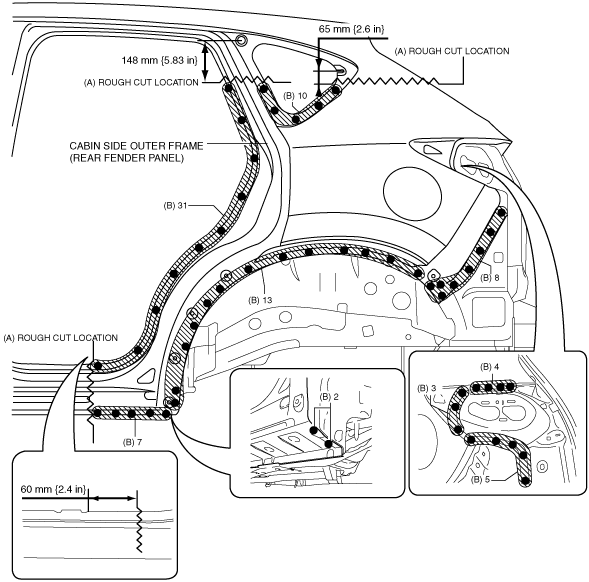

1.  Rough cut the 3 locations indicated by (A) shown in the figure.

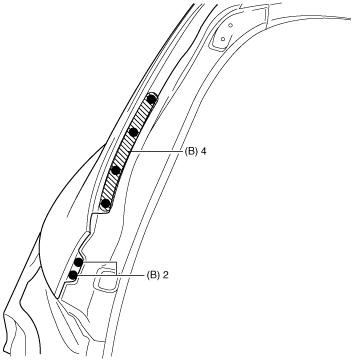

2.  Drill the 90 locations indicated by (B) shown in the figure.

ac5uub00000071

ac5wzb00000123

3.  Remove the cabin side outer frame (rear fender panel).
