DETERMINING OPEN CIRCUIT LOCATION (HS-CAN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)]

id100209000400

Caution

• Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)]. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)].)

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2. Apply the communication error DTC and the failed module to DTC Output Pattern And Malfunctioning Location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location.)

Note

• The open circuit location can be determined by the DTC indicated in the DTC Output Pattern And Malfunctioning Location chart. DTCs not listed in the chart are not used for the determination of the open circuit location. (See DTC Output Pattern And Malfunctioning Location.)

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

4. After repairs, return to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)], and verify that the repairs have been completed. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (R.H.D.)].)

DTC Output Pattern And Malfunctioning Location

Cross (×): Communication error-related DTC and failed module

M-MDS display		DTC output pattern and malfunctioning location
DTC output module	DTC	DTC output pattern and malfunctioning location
PCM (PCM)	U0101:00				×
	U0121:00		×
	U0131:00																			×
	U0140:00							×
	U0151:00																×
	U0155:00																				×
	U0214:00																		×
	U0235:00													×
ABS (DSC HU/CM)	U0100:00	×
	U0101:00				×
	U0114:00											×
	U0131:00																		×^*7	×^*8
	U0154:00																×
	U0155:00																				×
	U0235:00													×
TCM^*1 (TCM)	U0100:00	×		×
	U0121:00		×	×
	U0141:00							×
	U0155:00																				×
AFS^*2 (AFS control module)	U0100:00	×		×		×
	U0131:00																			×
	U0140:00							×
	U0155:00																				×
F_BCM (Front body control module (FBCM))	U0100:00	×		×		×
	U0101:00				×	×
	U0121:00		×	×		×
	U0151:00																×
	U0155:00																				×
	U0214:00																		×
	U0515:00																×
DSM^*3 (Position memory control module)	U0100:00	×		×		×			×
	U0101:00				×	×			×
	U0151:00																×
	U0155:00																				×
	U0214:00																		×
4X4^*4 (4WD control module)	U0100:00	×		×		×			×		×
	U0101:00				×	×			×		×
	U0121:00		×	×		×			×		×
SCBS^*5 (Laser sensor)	U0100:00	×		×		×			×		×		×
	U0121:00		×	×		×			×		×		×
	U0131:00																			×
	U0155:00																				×
FSC^*6 (Forward sensing camera)	U0100:00	×		×		×			×		×		×
	U0121:00		×	×		×			×		×		×
	U0131:00																			×
	U0140:00							×	×		×		×
	U0155:00																				×
	U0214:00																		×
RCM (SAS control module)	U0155:00																				×
SSU (Start stop unit)	U0100:00	×		×		×			×		×		×			×		×
	U0101:00				×	×			×		×		×			×		×
	U0121:00		×	×		×			×		×		×			×		×
	U0121:87		×	×		×			×		×		×			×		×
	U0131:00																			×
	U0140:00							×	×		×		×			×		×
	U0146:00																				×
	U0151:00																×	×
	U0155:00																				×
EPS (EPS control module)	U0100:00	×		×		×			×		×		×			×		×
	U0121:00		×	×		×			×		×		×			×		×
	U0155:00																				×
IC (Instrument cluster)	U0100:00	×		×		×			×		×		×			×		×
	U0101:00				×	×			×		×		×			×		×
	U0114:00											×	×			×		×
	U0121:00		×	×		×			×		×		×			×		×
	U0131:00																			×
	U0140:00							×	×		×		×			×		×
	U0151:00																×	×
	U0182:00						×		×		×		×			×		×
	U0214:00																		×
	U0235:00													×		×		×
	U023A:00														×	×		×
M-MDS display module		[Fail] display pattern
PCM		×		×		×			×		×		×			×		×
ABS			×	×		×			×		×		×			×		×
TCM^*1					×	×			×		×		×			×		×
AFS^*2							×		×		×		×			×		×
F_BCM								×	×		×		×			×		×
DSM^*3										×	×		×			×		×
4X4^*4												×	×			×		×
SCBS^*5														×		×		×
FSC^*6															×	×		×
RCM																	×	×
SSU																			×
EPS																				×
IC																					×
Possible cause and inspection item		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T

*1 :ATX

*2 :With AFS system

*3 :With position memory system

*4 :4WD

*5 :With smart city brake support

*6 :With hi-beam control (HBC) system

*7 :With smart city brake support or hi-beam control (HBC) system

*8 :Without smart city brake support or hi-beam control (HBC) system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• PCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between PCM and connector C-32

• Connector C-32 malfunction

• PCM malfunction

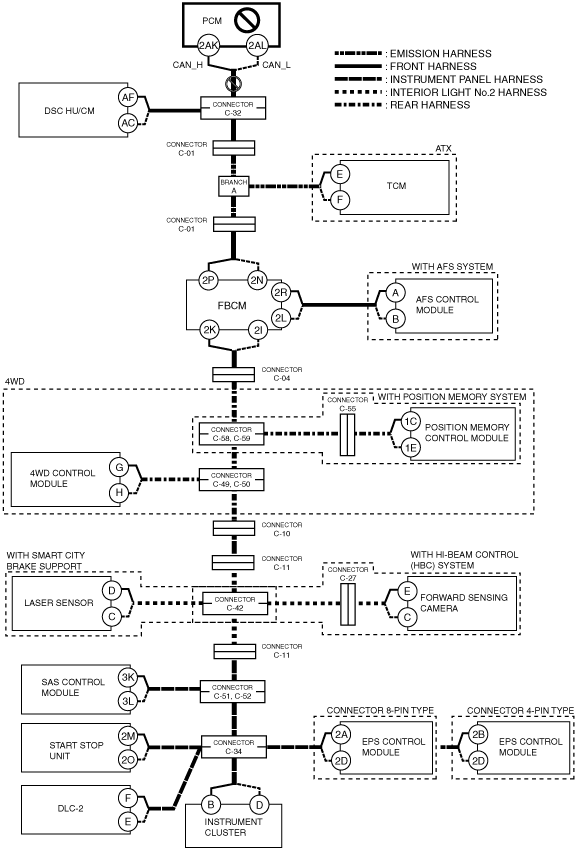

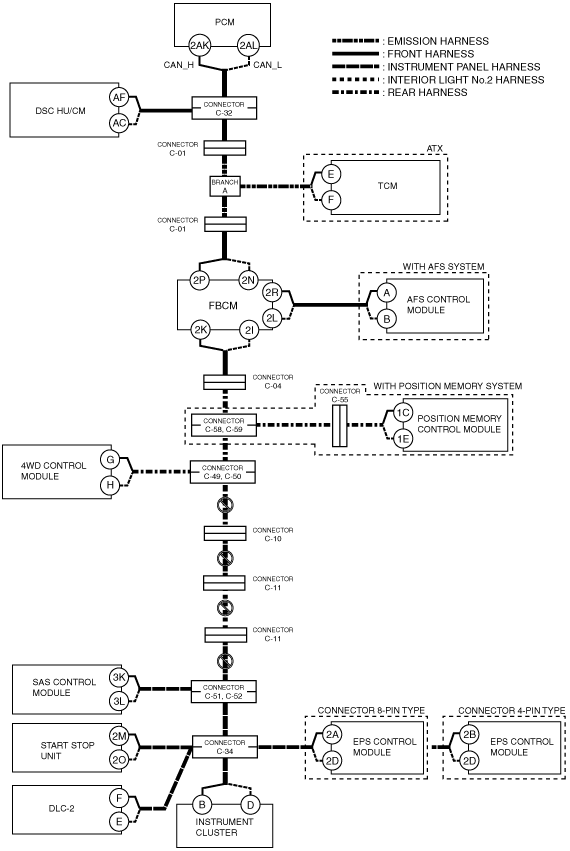

System wiring diagram

ac5wzw00003580

Inspection item

• PCM power supply voltage-related wiring harness and fuse

• PCM body ground related wiring harness

• PCM connector

• Connector C-32

• Wiring harness between PCM terminal 2AK and connector C-32

• Wiring harness between PCM terminal 2AL and connector C-32

• PCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• DSC HU/CM power supply voltage or body ground malfunction

• Open circuit in wiring harness between DSC HU/CM and connector C-32

• Connector C-32 malfunction

• DSC HU/CM malfunction

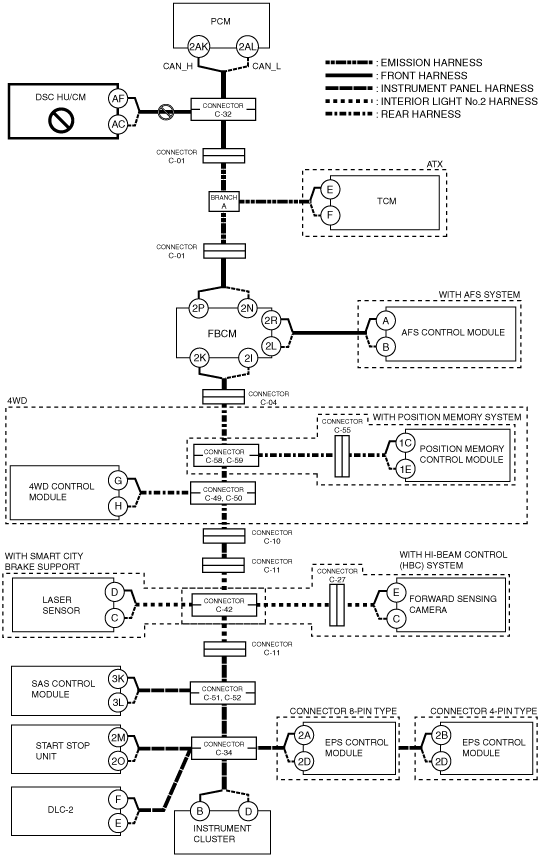

System wiring diagram

ac5wzw00003581

Inspection item

• DSC HU/CM power supply voltage-related wiring harness and fuse

• DSC HU/CM body ground related wiring harness

• DSC HU/CM connector

• Connector C-32

• Wiring harness between DSC HU/CM terminal AF and connector C-32

• Wiring harness between DSC HU/CM terminal AC and connector C-32

• DSC HU/CM

ATX

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-32 and connector C-01

• Open circuit in wiring harness between connector C-01 and branch A

• Connector C-32 malfunction

• Connector C-01 malfunction

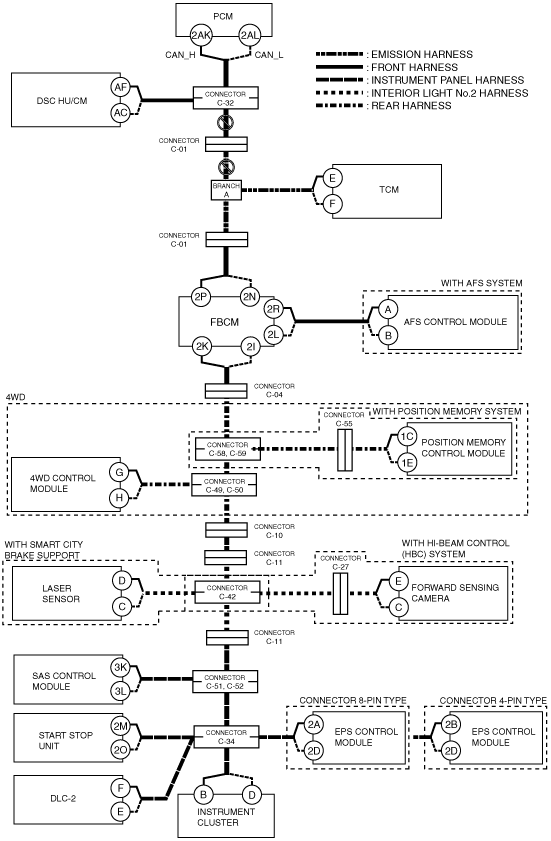

System wiring diagram

ac5wzw00003582

Inspection item

• Connector C-32

• Connector C-01

• Wiring harness between connector C-32 and connector C-01

• Wiring harness between connector C-01 and branch A

MTX

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-32 and connector C-01

• Open circuit in wiring harness between connector C-01 and connector C-01

• Open circuit in wiring harness between connector C-01 and front body control module (FBCM)

• CAN circuit in front body control module (FBCM) malfunction

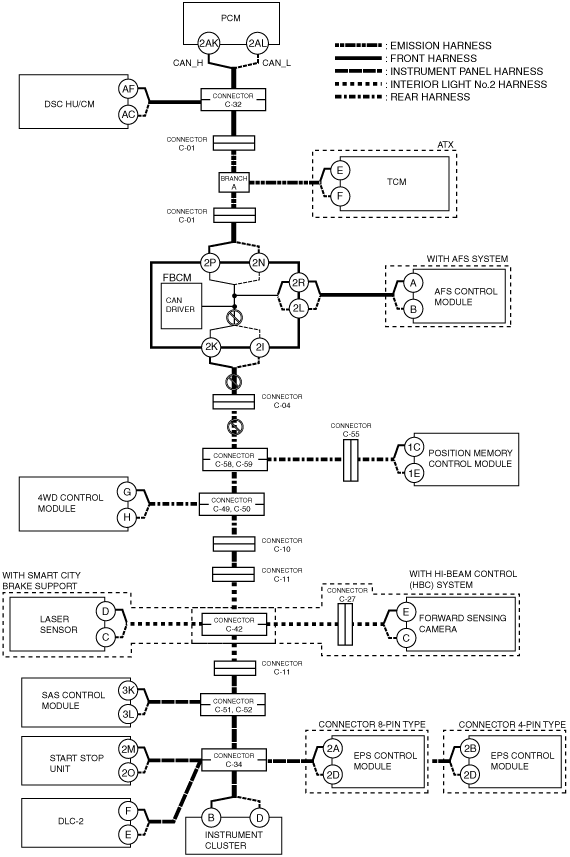

System wiring diagram

ac5wzw00003583

Inspection item

• Front body control module (FBCM) connector

• Connector C-32

• Connector C-01

• Wiring harness between connector C-32 and connector C-01

• Wiring harness between connector C-01 and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2P and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2N and connector C-01

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• TCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between TCM and branch A

• TCM malfunction

System wiring diagram

ac5wzw00003584

Inspection item

• TCM power supply voltage-related wiring harness and fuse

• TCM body ground related wiring harness

• TCM connector

• Wiring harness between TCM terminal E and branch A

• Wiring harness between TCM terminal F and branch A

• TCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch A and connector C-01

• Open circuit in wiring harness between connector C-01 and front body control module (FBCM)

• Connector C-01 malfunction

• CAN circuit in front body control module (FBCM) malfunction

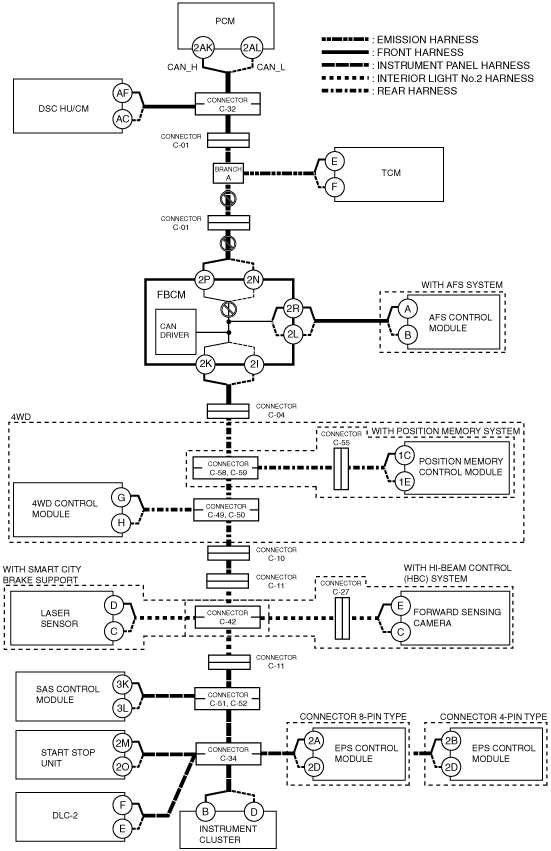

System wiring diagram

ac5wzw00003585

Inspection item

• Front body control module (FBCM) connector

• Connector C-01

• Wiring harness between branch A and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2P and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2N and connector C-01

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• AFS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between AFS control module and front body control module (FBCM)

• CAN circuit in front body control module (FBCM) malfunction

• AFS control module malfunction

System wiring diagram

ac5wzw00003586

Inspection item

• AFS control module power supply voltage-related wiring harness and fuse

• AFS control module body ground related wiring harness

• Front body control module (FBCM) connector

• AFS control module connector

• Wiring harness between front body control module (FBCM) terminal 2R and AFS control module terminal A

• Wiring harness between front body control module (FBCM) terminal 2L and AFS control module terminal B

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2R and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2L and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Front body control module (FBCM) power supply voltage or body ground malfunction

• Front body control module (FBCM) malfunction

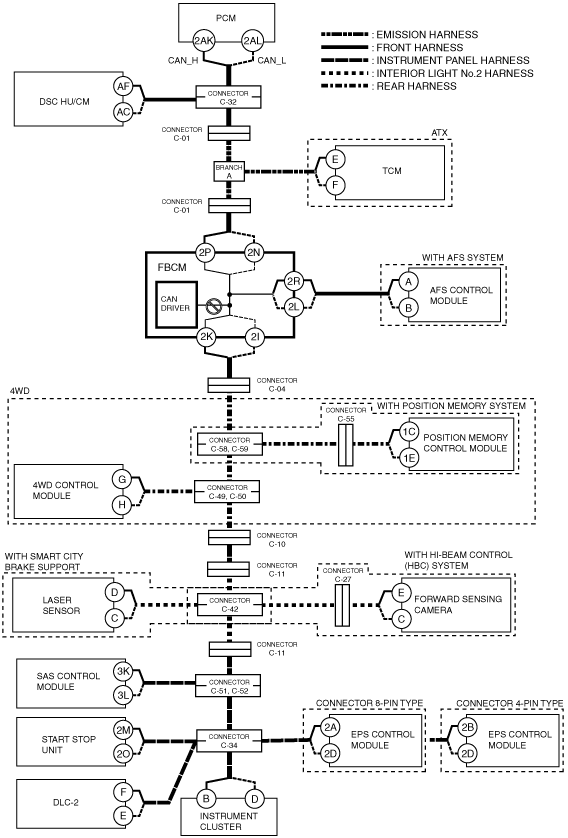

System wiring diagram

ac5wzw00003587

Inspection item

• Front body control module (FBCM) power supply voltage-related wiring harness and fuse

• Front body control module (FBCM) body ground related wiring harness

• Front body control module (FBCM)

4WD with position memory system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connector C-04

• Open circuit in wiring harness between connector C-04 and connectors C-58, C-59

• Connector C-04 malfunction

• Connectors C-58, C-59 malfunction

• CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

ac5wzw00003588

Inspection item

• Front body control module (FBCM) connector

• Connector C-04

• Connectors C-49, C-50

• Wiring harness between front body control module (FBCM) terminal 2K and connector C-04

• Wiring harness between front body control module (FBCM) terminal 2I and connector C-04

• Wiring harness between connector C-04 and connectors C-58, C-59

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

4WD without position memory system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connector C-04

• Open circuit in wiring harness between connector C-04 and connectors C-49, C-50

• Connector C-04 malfunction

• Connectors C-49, C-50 malfunction

• CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

ac5wzw00006949

Inspection item

• Front body control module (FBCM) connector

• Connector C-04

• Connectors C-49, C-50

• Wiring harness between front body control module (FBCM) terminal 2K and connector C-04

• Wiring harness between front body control module (FBCM) terminal 2I and connector C-04

• Wiring harness between connector C-04 and Connectors C-49, C-50

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

2WD

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connector C-04

• Open circuit in wiring harness between connector C-04 and connector C-10

• Open circuit in wiring harness between connector C-10 and connector C-11

• Open circuit in wiring harness between connector C-11 and connector C-42

• Connector C-04 malfunction

• Connector C-10 malfunction

• Connector C-11 malfunction

• Connector C-42 malfunction

• CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

ac5wzw00003589

Inspection item

• Front body control module (FBCM) connector

• Connector C-04

• Connector C-10

• Connector C-11

• Connector C-42

• Wiring harness between front body control module (FBCM) terminal 2K and connector C-04

• Wiring harness between front body control module (FBCM) terminal 2I and connector C-04

• Wiring harness between connector C-04 and connector C-10

• Wiring harness between connector C-10 and connector C-11

• Wiring harness between connector C-11 and connector C-42

• Front body control module (FBCM)

― Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

― Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Position memory control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between position memory control module and connector C-55

• Open circuit in wiring harness between connector C-55 and connectors C-58, C-59

• Connector C-55 malfunction

• Connectors C-58, C-59 malfunction

• Position memory control module malfunction

System wiring diagram

ac5wzw00006950

Inspection item

• Position memory control module power supply voltage-related wiring harness and fuse

• Position memory control module body ground related wiring harness

• Position memory control module connector

• Connector C-55

• Connectors C-58, C-59

• Wiring harness between position memory control module terminal 1C and connector C-55

• Wiring harness between position memory control module terminal 1E and connector C-55

• Wiring harness between connectors C-58, C-59 and connector C-55

• Position memory control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-58, C-59 and connectors C-49, C-50

• Connectors C-58, C-59 malfunction

• Connectors C-49, C-50 malfunction

System wiring diagram

ac5wzw00003591

Inspection item

• Connectors C-58, C-59

• Connectors C-49, C-50

• Wiring harness between connectors C-58, C-59 and connectors C-49, C-50

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• 4WD control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between 4WD control module and connectors C-49, C-50

• Connectors C-49, C-50 malfunction

• 4WD control module malfunction

System wiring diagram

ac5wzw00003590

Inspection item

• 4WD control module power supply voltage-related wiring harness and fuse

• 4WD control module body ground related wiring harness

• 4WD control module connector

• Connectors C-49, C-50

• Wiring harness between 4WD control module terminal G and connector C-49

• Wiring harness between 4WD control module terminal H and connector C-50

• 4WD control module

With smart city brake support or hi-beam control (HBC) system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-49, C-50 and connector C-10

• Open circuit in wiring harness between connector C-10 and connector C-11

• Open circuit in wiring harness between connector C-11 and connector C-42

• Connectors C-49, C-50 malfunction

• Connector C-10 malfunction

• Connector C-11 malfunction

• Connector C-42 malfunction

System wiring diagram

ac5wzw00006951

Inspection item

• Connectors C-49, C-50

• Connector C-10

• Connector C-11

• Connector C-42

• Wiring harness between connectors C-49, C-50 and connector C-10

• Wiring harness between connector C-10 and connector C-11

• Wiring harness between connector C-11 and connector C-42

Without smart city brake support or hi-beam control (HBC) system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-49, C-50 and connector C-10

• Open circuit in wiring harness between connector C-10 and connector C-11

• Open circuit in wiring harness between connector C-11 and connector C-11

• Open circuit in wiring harness between connector C-11 and connectors C-51, C-52

• Connectors C-49, C-50 malfunction

• Connector C-10 malfunction

• Connector C-11 malfunction

• Connectors C-51, C-52 malfunction

System wiring diagram

ac5wzw00006952

Inspection item

• Connectors C-49, C-50

• Connector C-10

• Connector C-11

• Connectors C-51, C-52

• Wiring harness between connectors C-49, C-50 and connector C-10

• Wiring harness between connector C-10 and connector C-11

• Wiring harness between connector C-11 and connector C-11

• Wiring harness between connector C-11 and connectors C-51, C-52

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Laser sensor power supply voltage or body ground malfunction

• Open circuit in wiring harness between laser sensor and connector C-42

• Connector C-42 malfunction

• Laser sensor malfunction

System wiring diagram

ac5wzw00003593

Inspection item

• Laser sensor power supply voltage-related wiring harness and fuse

• Laser sensor body ground related wiring harness

• Laser sensor connector

• Connector C-42

• Wiring harness between laser sensor terminal D and connector C-42

• Wiring harness between laser sensor terminal C and connector C-42

• Laser sensor

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Forward sensing camera power supply voltage or body ground malfunction

• Open circuit in wiring harness between forward sensing camera and connector C-27

• Open circuit in wiring harness between connector C-27 and connector C-42

• Connector C-27 malfunction

• Connector C-42 malfunction

• Forward sensing camera malfunction

System wiring diagram

ac5wzw00003594

Inspection item

• Forward sensing camera power supply voltage-related wiring harness and fuse

• Forward sensing camera body ground related wiring harness

• Forward sensing camera connector

• Connector C-27

• Connector C-42

• Wiring harness between forward sensing camera terminal E and connector C-27

• Wiring harness between forward sensing camera terminal C and connector C-27

• Wiring harness between connector C-27 and connector C-42

• Forward sensing camera

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-42 and connector C-11

• Open circuit in wiring harness between connector C-11 and connectors C-51, C-52

• Connector C-42 malfunction

• Connector C-11 malfunction

• Connectors C-51, C-52 malfunction

System wiring diagram

ac5wzw00003595

Inspection item

• Connector C-42

• Connector C-11

• Connectors C-51, C-52

• Wiring harness between connector C-42 and connector C-11

• Wiring harness between connector C-11 and connectors C-51, C-52

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• SAS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between SAS control module and connectors C-51, C-52

• Connectors C-51, C-52 malfunction

• SAS control module malfunction

System wiring diagram

ac5wzw00003596

Inspection item

Warning

• Handling the component parts of the SRS air bag system improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components of the SRS air bag system.

(See AIR BAG SYSTEM SERVICE WARNINGS.)

(See AIR BAG SYSTEM SERVICE CAUTIONS.)

• SAS control module power supply voltage-related wiring harness and fuse

• SAS control module body ground related wiring harness

• SAS control module connector

• Connectors C-51, C-52

• Wiring harness between SAS control module terminal 3K and connector C-51

• Wiring harness between SAS control module terminal 3L and connector C-52

• SAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-51, C-52 and connector C-34

• Connectors C-51, C-52 malfunction

• Connector C-34 malfunction

System wiring diagram

ac5wzw00003597

Inspection item

• Connectors C-51, C-52

• Connector C-34

• Wiring harness between connectors C-51, C-52 and connector C-34

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Start stop unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between start stop unit and connector C-34

• Connector C-34 malfunction

• Start stop unit malfunction

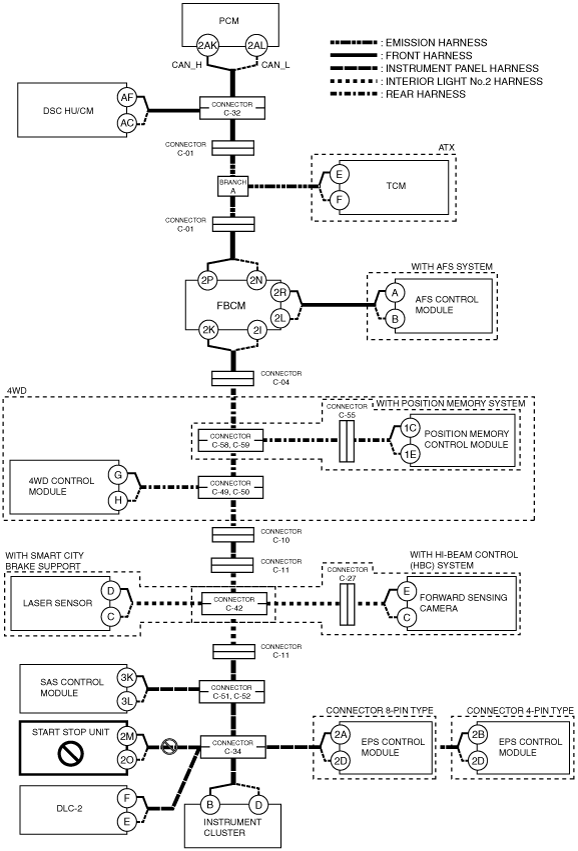

System wiring diagram

ac5wzw00003598

Inspection item

• Start stop unit power supply voltage-related wiring harness and fuse

• Start stop unit body ground related wiring harness

• Start stop unit connector

• Connector C-34

• Wiring harness between start stop unit terminal 2M and connector C-34

• Wiring harness between start stop unit terminal 2O and connector C-34

• Start stop unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• EPS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between EPS control module and connector C-34

• Connector C-34 malfunction

• EPS control module malfunction

System wiring diagram

ac5wzw00003599

Inspection item

• EPS control module power supply voltage-related wiring harness and fuse

• EPS control module body ground related wiring harness

• EPS control module connector

• Connector C-34

• Wiring harness between EPS control module terminal 2A and connector C-34 (connector 8-pin type)

• Wiring harness between EPS control module terminal 2D and connector C-34 (connector 8-pin type)

• Wiring harness between EPS control module terminal 2B and connector C-34 (connector 4-pin type)

• Wiring harness between EPS control module terminal 2D and connector C-34 (connector 4-pin type)

• EPS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Instrument cluster power supply voltage or body ground malfunction

• Open circuit in wiring harness between instrument cluster and connector C-34

• Connector C-34 malfunction

• Instrument cluster malfunction

System wiring diagram

ac5wzw00003600

Inspection item

• Instrument cluster power supply voltage-related wiring harness and fuse

• Instrument cluster body ground related wiring harness

• Instrument cluster connector

• Connector C-34

• Wiring harness between instrument cluster terminal B and connector C-34

• Wiring harness between instrument cluster terminal D and connector C-34

• Instrument cluster
