VALVE SPRING INSPECTION

id011000501400

Caution

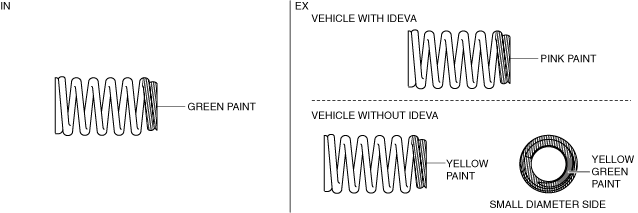

• The valve springs differ depending on the IN and EX sides. Therefore, verify the identification paint beforehand and inspect the valve springs.

bes2ze00000144

1. Measure the valve spring height using the spring tester.

• If it is not within the specification, replace the valve spring.

bp31je00000053

Valve spring installation height

IN: When pressurized with spring force of 190—210 N {19.4—21.4 kgf, 42.8—47.2 lbf}, spring height is 35.0 mm {1.38 in}

EX [Vehicles with IDEVA]: When pressurized with spring force of 209—231 N {21.4—23.5 kgf, 47.0—51.9 lbf}, spring height is 35.0 mm {1.38 in}

EX [Vehicles without IDEVA]: When pressurized with spring force of 256.5—283.5 N {26.16—28.90 kgf, 57.67—63.73 lbf}, spring height is 35.0 mm {1.38 in}

2. Measure the amount of off-square on the valve spring using a square.

(1) Rotate the valve spring one full turn and measure A at the point where the gap is the largest.

• If it exceeds the maximum specification, replace the valve spring.

beltze00000017

Maximum valve spring off-square

IN: 2.0 ° (1.7 mm {0.067 in})

EX: 2.0 ° (1.9 mm {0.075 in})
