TRANSAXLE DISASSEMBLY

id051500168100


Step 1

1.  Assemble the SST (49 G019 0A0) to the SST (49 0107 680A).

bc62zm00000093

Bolt used
Part No.: 9YA02 A220 or M12×1.75 length 40 mm {1.6 in}
Tightening torque
88—118 N·m {9.0—12 kgf·m, 65—87 ft·lbf}

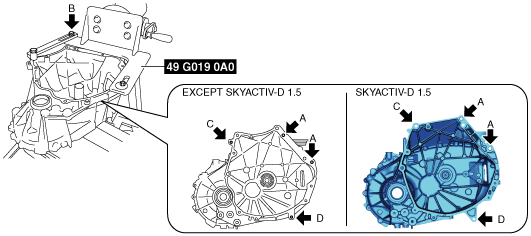

2.  Assemble the MTX to the SST.

bc62zm00000094

Bolt A
Part No.: 99450 1055 or M10×1.25 length 55 mm {2.2 in}, and nut (M10×1.25)
Bolt A tightening torque
38—52 N·m {3.9—5.3 kgf·m, 29—38 ft·lbf}
Bolt B
SST (49 G019 033 part of 49 G019 0A0)
Bolt B tightening torque
88—118 N·m {9.0—12 kgf·m, 65—87 ft·lbf}
Bolt C
Part No.: 9YA02 1080 or M10×1.5 length 55 mm {2.2 in}
Bolt C tightening torque
38—52 N·m {3.9—5.3 kgf·m, 29—38 ft·lbf}
Bolt D
Part No.: 99450 1030 or M10×1.25 length 30 mm {1.2 in}
Bolt D tightening torque
38—52 N·m {3.9—5.3 kgf·m, 29—38 ft·lbf}

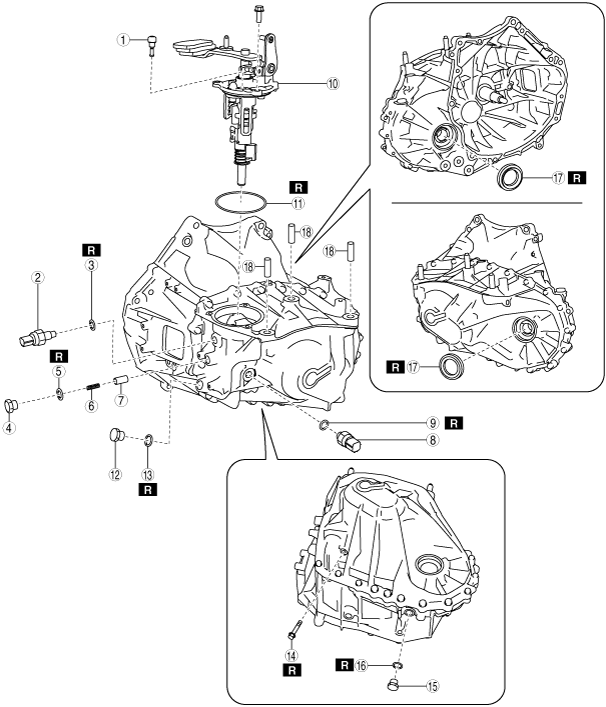

3.  Remove the parts around the MTX using the procedure shown in the figure.

bc62zm00000001

1
Breather
2
Neutral switch
3
Gasket
4
Plug
5
Gasket
6
Spring
7
Detent ball pin
8
Back-up light switch
9
Gasket
10
Shift control module
11
O-ring
12
Oil level plug
13
Gasket
14
Reverse gear shaft anchor bolt
15
Drain plug
16
Gasket
17
Oil seal
18
Stud bolt


Step 2

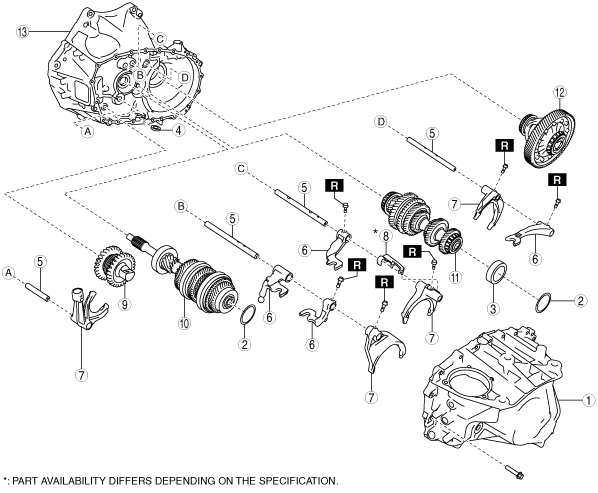

1.  Disassemble the MTX in the order shown in the figure.

bc62zm00000095

1
Transaxle case component
(See Transaxle case component removal note.)
2
Shim
3
Bearing outer race
4
Magnet
5
Shift rod
6
Shift rod end
7
Shift fork
8
Oil path
9
Reverse idler gear component
10
Primary shaft component
(See Primary shaft component, secondary shaft component removal note.)
11
Secondary shaft component
(See Primary shaft component, secondary shaft component removal note.)
12
Differential
13
Clutch housing component

2.  Remove the silicone sealant of the transaxle case component and clutch housing component, and clean all the parts.


Transaxle case component removal note

1.  Tap the locations shown in the figure using a plastic hammer to remove the transaxle case component.

bc61um00000005


Primary shaft component, secondary shaft component removal note

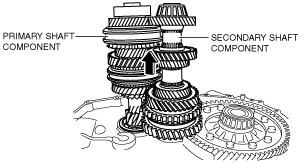

1.  Remove the primary shaft component and secondary shaft component as a single unit.

bc61um00000006
