SHIFT CONTROL MODULE DISASSEMBLY
id051500170100

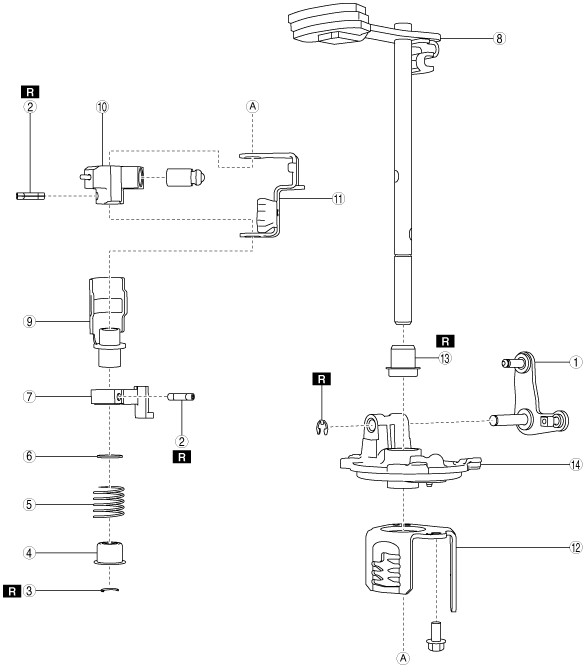

1. Disassemble the shift control module in the order shown in the figure.
bc62zm00000014
|
|
1
|
Select lever
|
|
2
|
Pin
(See Pin Removal Note.)
|
|
3
|
Clip
(See Clip Removal Note.)
|
|
4
|
Spring seat
|
|
5
|
Spring
|
|
6
|
Washer
|
|
7
|
Switch pin
|
|
8
|
Shift lever
|
|
9
|
Interlock sleeve
|
|
10
|
Control lever component
|
|
11
|
Holder plate
|
|
12
|
Guide plate
|
|
13
|
Oil seal
|
|
14
|
Control case
|
Pin Removal Note
1. Secure the shift control module in a vise.
bc62zm00000015
|

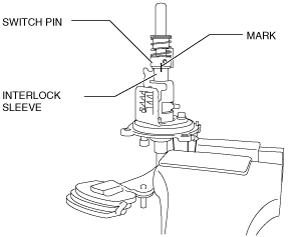

2. Mark the switch pin and interlock sleeve.
bc62zm00000016
|
3. Remove the pin from the switch pin using a punch.
bc62zm00000017
|
4. Move the shift lever to set the guide pin to the 5GR position of the guide plate.
bc62zm00000018
|
5. Remove the pin from the control lever component using a punch.
bc62zm00000046
|
Clip Removal Note

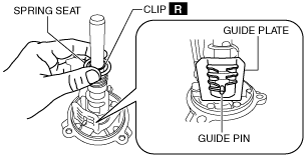

1. Move the guide pin to the position shown in the figure for the guide plate.
bc62zm00000047
|
2. Push down the spring seat by hand.
3. Detach the clip.
