TRANSAXLE CASE AND CLUTCH HOUSING DISASSEMBLY

id051500175300


Transaxle Case Component Disassembly

1.  Install the bolt and nut to the transaxle case component as shown in the figure, and pinch the bolt using a vice to secure the transaxle component.

bd62zm00000009

Bolt
Part No.: 99450 0855 or M8×1.25 length 55 mm {2.2 in}
Nut
M8×1.25

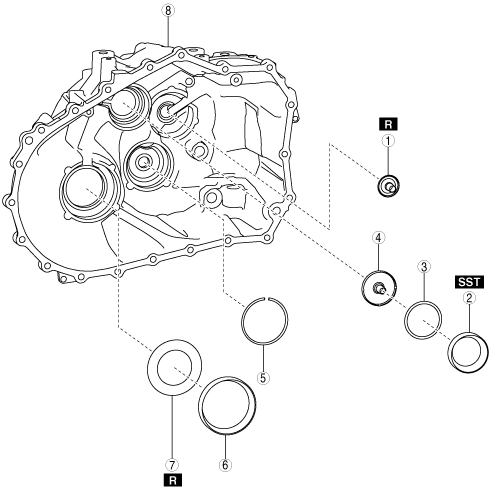

2.  Disassemble the transaxle case component in the order shown in the figure.

bd62zm00000010

1
Funnel (primary shaft)
(See Funnel (primary shaft) removal note.)
2
Bearing outer race (secondary shaft No.2)
(See Bearing outer race (secondary shaft No.2) removal note.)
3
Shim
4
Funnel (secondary shaft No.2)
5
Clip
6
Bearing outer race (differential)
(See Bearing outer race (differential), shim removal note)
7
Shim
(See Bearing outer race (differential), shim removal note)
8
Transaxle case

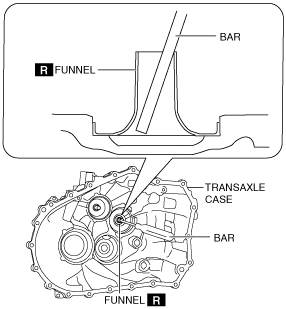

Funnel (primary shaft) removal note

1.  Remove the funnel from the transaxle case using a bar as shown in the figure.

bd62zm00000011


Bearing outer race (secondary shaft No.2) removal note

1.  Remove the bearing outer race from the transaxle case using the SST.

bd62zm00000012


Bearing outer race (differential), shim removal note

1.  Using a punch, tap the shim from the oil seal side to remove the bearing outer race and the shim.

bd62zm00000013

Caution
•  When using a punch, be careful not to scratch or damage the transaxle case.


Clutch Housing Component Disassembly

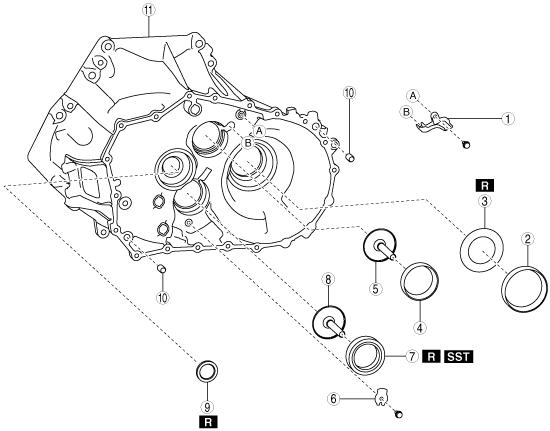

1.  Disassemble the clutch housing component in the order shown in the figure.

bd62zm00000014

1
Oil path
2
Bearing outer race (differential)
(See Bearing outer race (differential), shim removal note.)
3
Shim
(See Bearing outer race (differential), shim removal note.)
4
Bearing outer race (secondary shaft No.2)
5
Funnel
6
Stopper plate
7
Roller bearing
(See Roller bearing removal note.)
8
Funnel
9
Oil seal
(See Oil seal removal note.)
10
Dowel pin
11
Clutch housing

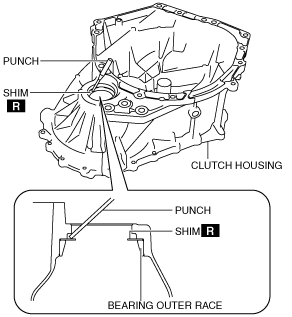

Bearing outer race (differential), shim removal note

1.  Using a punch, tap the shim from the oil seat side to remove the bearing outer race and the shim.

bd62zm00000015

Caution
•  When using a punch, be careful not to scratch or damage the transaxle case.


Roller bearing removal note

1.  Remove the roller bearing using a SST.

bd62zm00000016


Oil seal removal note

1.  Remove the oil seal using a flathead screwdriver.

bd62zm00000017
