CYLINDER HEAD GASKET [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0110m2000300
Purpose, Function
• The cylinder head gasket is installed between the cylinder head and cylinder block to prevent leakage of air-fuel mixture, combustion gas, engine oil, and engine coolant.
Construction

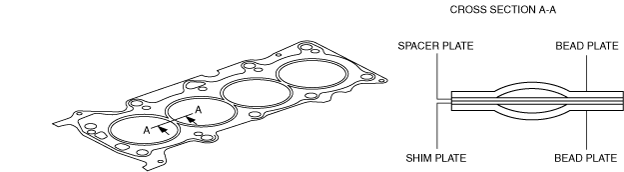

• A four-layer type metal gasket has been adopted for the cylinder head gasket.
