CYLINDER HEAD COVER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]
id0110m2105000
Purpose, Function
• The cylinder head cover prevents foreign matter penetration and engine oil spatter.
• The oil baffle plate reduces engine oil consumption by separating the engine oil from the blow-by gas.
Construction
• The lightweight cylinder head cover is made of hard plastic with excellent noise absorption.

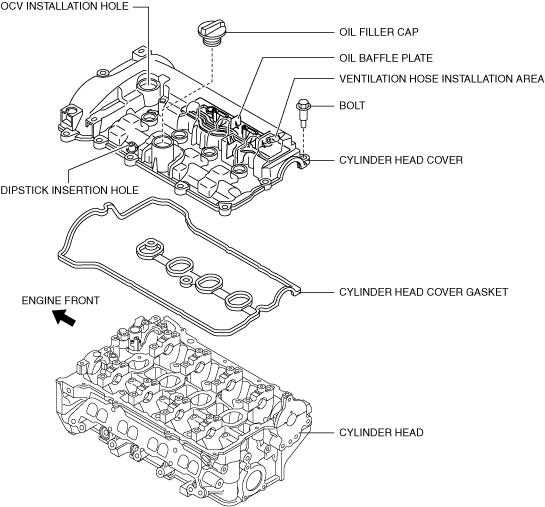

• The cylinder head cover has the following parts:
