VALVE MECHANISM [SKYACTIV-G 2.5T]
id0110q8001200
Outline
• A DOHC type valve system has been adopted and consists of four valves (two intake valves and two exhaust valves) per cylinder for a total of 16 valves operated by two camshafts.
Structure

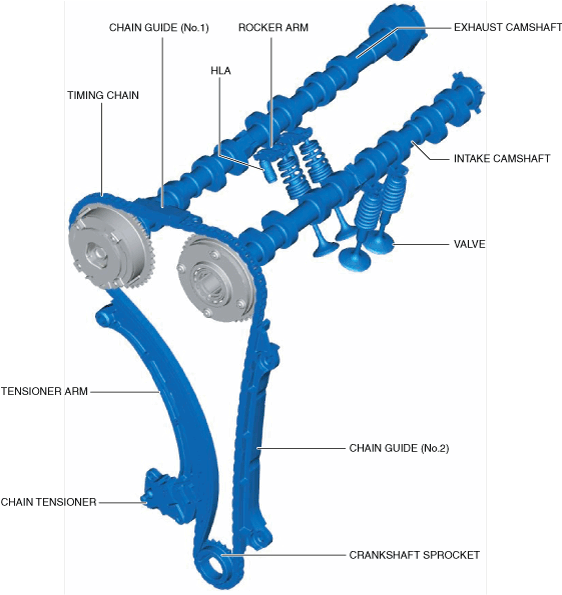

Structural view
