CAMSHAFT [SKYACTIV-G 2.5T]

id0110q8001400

Purpose, Function

• The camshaft is rotated by receiving the rotation force of the crankshaft via the timing chain. The valve is opened and closed according to the cam shape at this time.

Construction

• The camshaft is located on the cylinder head.

amxuun00001119

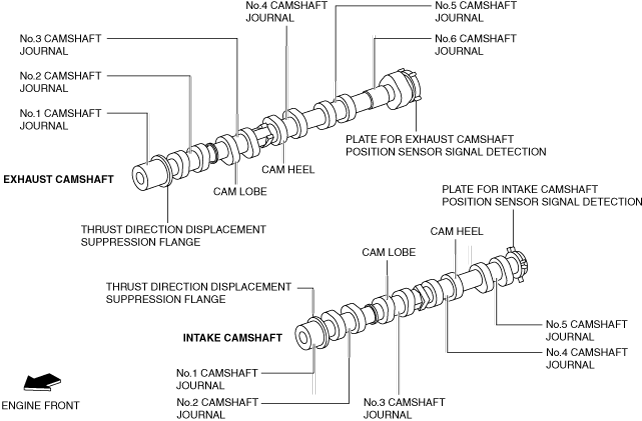

• The camshaft has the following parts shown in the figure.

ac9uun00002284

• The intake camshaft is a five-bearing type and the exhaust camshaft is a six-bearing type.

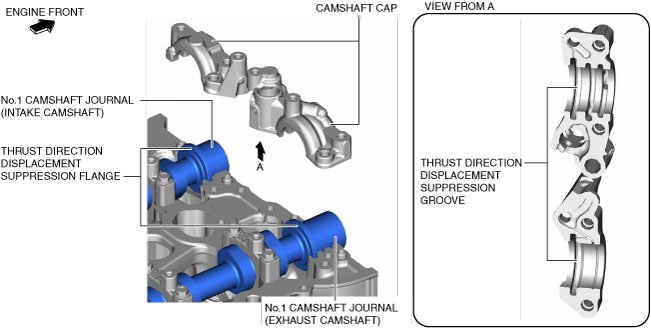

• The camshaft thrust force is suppressed by the No.1 journal.

amxuun00001121

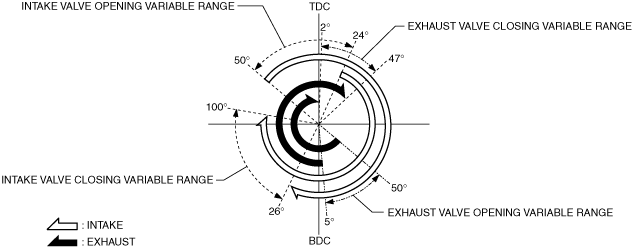

Valve timing

ac9uun00002285

Item

Specification

Valve timing

IN

Open

(°)

BTDC 50—ATDC 24

Close

(°)

ABDC 26—ABDC 100

EX

Open

(°)

BBDC 50—BBDC 5

Close

(°)

ATDC 2—ATDC 47

Item				Specification
Valve timing	IN	Open	(°)	BTDC 50—ATDC 24
	IN	Close	(°)	ABDC 26—ABDC 100
	EX	Open	(°)	BBDC 50—BBDC 5
	EX	Close	(°)	ATDC 2—ATDC 47
