TIMING CHAIN, CHAIN TENSIONER [SKYACTIV-G 2.5T]

id0110q8001500

Purpose, Function

Timing chain

•  The timing chain transmits the rotation force of the crankshaft to the camshaft to perform the rotation timing of the crankshaft and camshaft.

Chain tensioner

•  The chain tensioner stabilizes the movement of the timing chain by constantly holding the tension of the timing chain to stabilize the valve open/close timing.

Construction

Timing chain

•  The timing chain is located between the camshaft sprocket and crankshaft sprocket.

ac5wzn00005372

•  Lubrication of the timing chain and each sprocket is performed using the engine oil from the engine front cover.

•  The sliding resistance has been reduced and the timing chain behavior has been stabilized by changing to a straight-shaped chain guide (No.2) and setting the chain tensioner load to the required minimum.

•  Improvement of the rigidity of the chain guide and tensioner arm and the stability of the timing chain operation have reduced the sliding resistance.

Chain tensioner

•  The chain tensioner is located on the cylinder block (engine front part).

•  An oil pressure type chain tensioner has been adopted for the chain tensioner.

Operation

Chain tensioner

•  Tension fluctuation on the timing chain is suppressed due to hydraulic pressure and spring force, and the timing chain tensioner maintains tension on the timing chain.

Chain tensioner type A

ac4ccn00000150

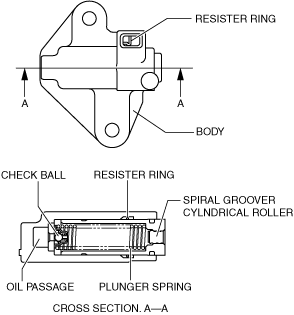

Chain tensioner type B

ac4ccn00000151
