•  The engine mount secures the engine to the vehicle body, reducing vibration and noise. In addition, the engine drive force is transmitted efficiently to the powertrain by the engine mounts absorbing various forces while the vehicle is driven.

•  The three points at the front of the engine (No.3 engine mount), one side of the transaxle (No.1 engine mount), and the rear upper part of the transaxle (No.4 engine mount) are supported.

ac5wzn00005241

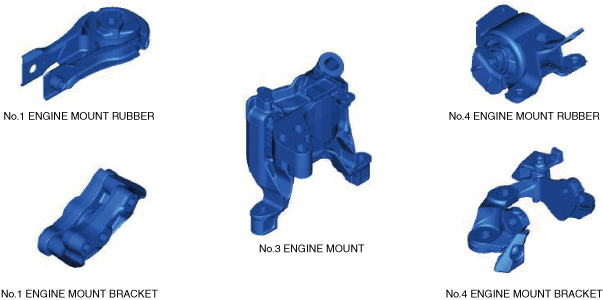

•  With the adoption of the oil-filled bushing type for the No.3 engine mount and No.4 engine mount rubber, the damper effect has been improved.

ac5wzn00005242

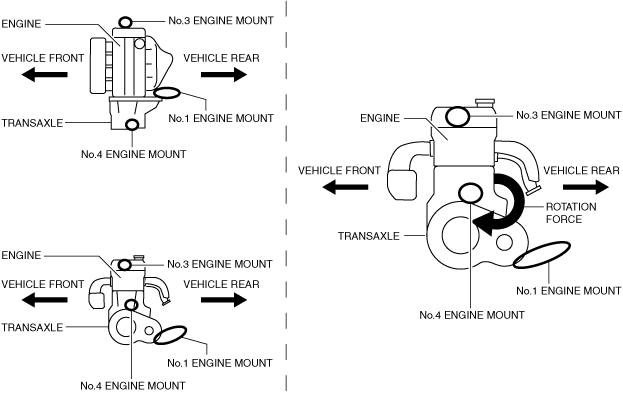

•  By locating the one side of the transaxle (No.1 engine mount) to the transaxle lower end, the No.1 engine mount absorbs the rotation force to the powertrain generated during engine torque fluctuation. The layout is designed to disperse the rotation force to the front/back directions of the engine.

am2zzn00003064
