DRIVE BELT [SKYACTIV-D 2.2]
id0110s5001100
Purpose, Function
• The drive belt transmits rotation force of the crankshaft pulley to the pulley for the auxiliary parts.
Construction

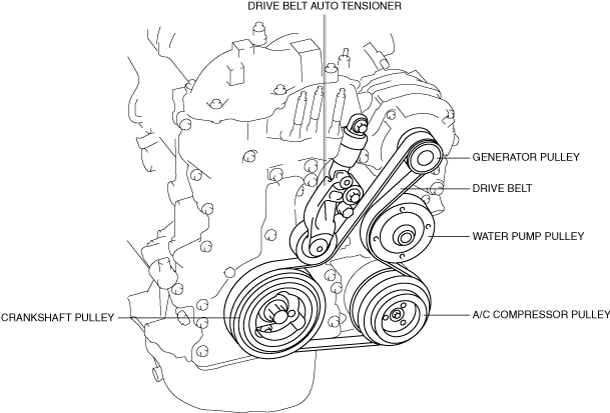

• The drive belt is installed to the front of the engine.
• A V-ribbed belt has been adopted for the drive belt.

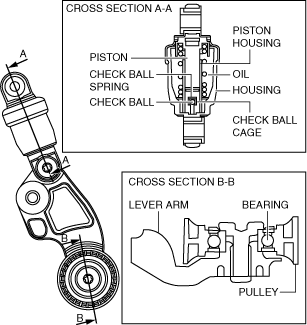

• With the adoption of the oil pressure type drive belt auto tensioner, the change in tension by the oil pressure damper operation is absorbed. As a result, the sliding resistance has been reduced by lowering the drive belt tension setting.
