VALVE MECHANISM [SKYACTIV-D 2.2]


id0110s5001200


Outline

•  A DOHC type valve system has been adopted and consists of four valves (two intake valves and two exhaust valves) per cylinder for a total of 16 valves operated by two camshafts.

Structural View

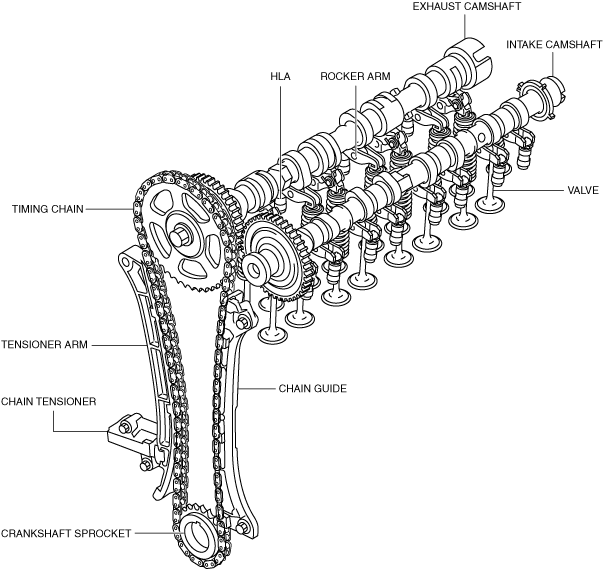

Fuel injector (2pin type)

am6zzn00003114

Fuel injector (6pin type)

ac8wzn00000097
