LUBRICATION SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0111m1002100


Outline

•  Pressure loss is reduced by optimizing the oil passage.
•  With the adoption of the chain drive type oil pump, oil pump drive force has been reduced.
•  With the adoption of the oil shower pipe, sliding resistance has been reduced.
•  With the adoption of the engine oil solenoid valve, oil pump discharge pressure can be controlled (engine oil control*1 or engine oil variable control*2).
*1  :Without coolant control valve
*2  :With coolant control valve

Structural View

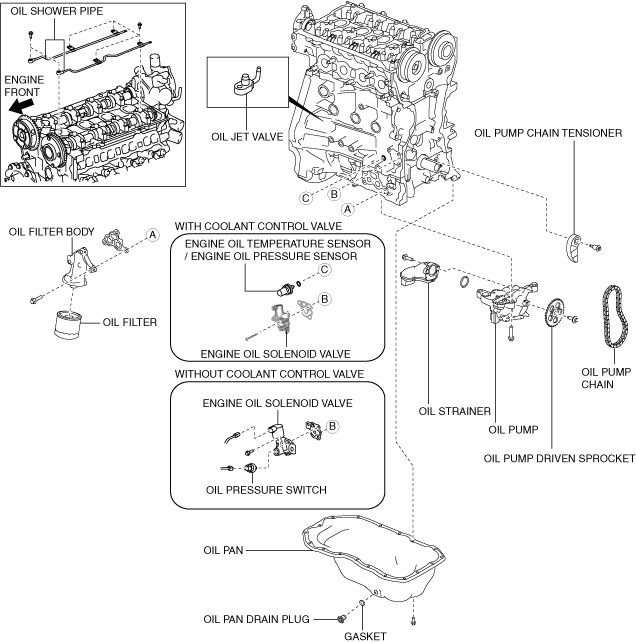

SKYACTIV-G 2.0

ac5wzn00004875

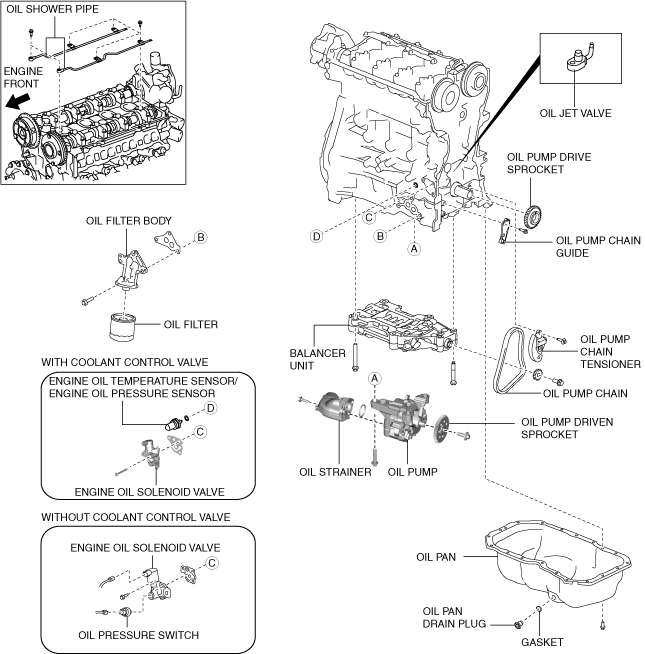

SKYACTIV-G 2.5

ac5wzn00004876

Flow View

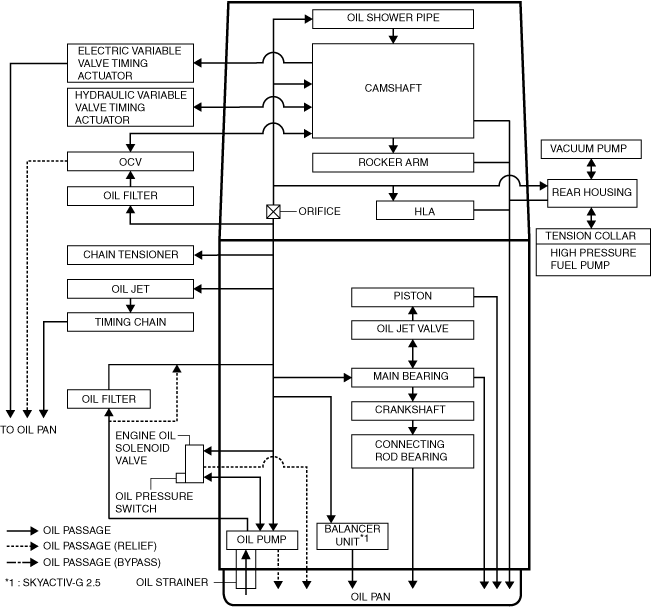

Without coolant control valve

ac5wzn00004302

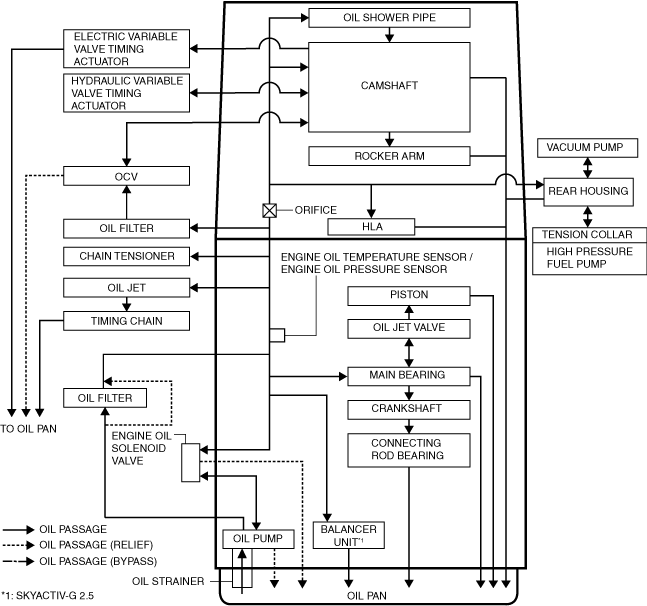

With coolant control valve

ac5wzn00005346

Structure

•  Consists of the following parts:

Oil filter
(See OIL FILTER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil pan
(See OIL PAN [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil strainer
(See OIL STRAINER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil pump
(See OIL PUMP [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil jet valve
(See OIL JET VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil shower pipe
(See OIL SHOWER PIPE [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
