LUBRICATION SYSTEM [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0111m2002100


Outline

•  Hydraulic passages for cylinder deactivation have been added to the cylinder head.

Structural View

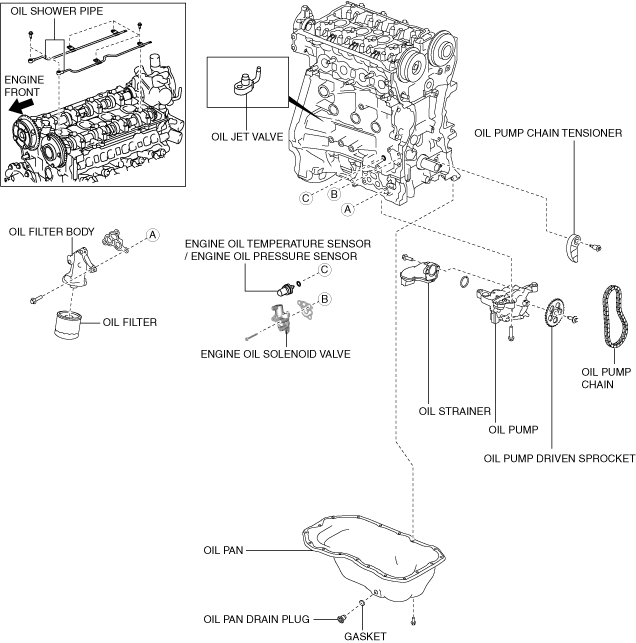

SKYACTIV-G 2.0

ac5wzn00004675

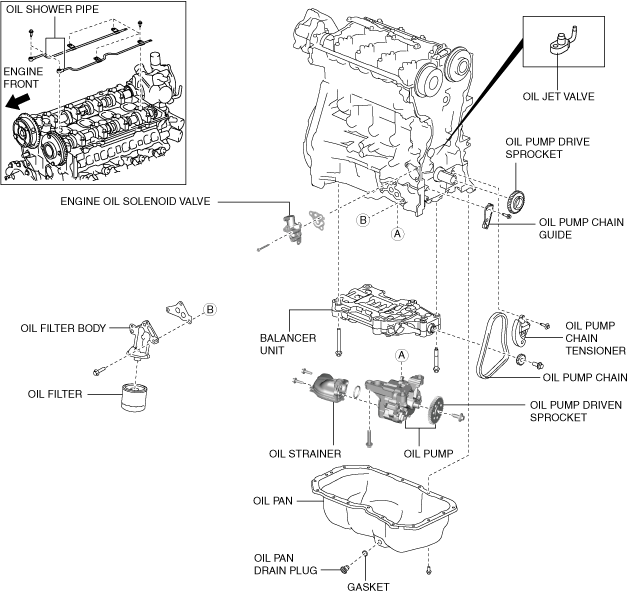

SKYACTIV-G 2.5

ac5wzn00004659

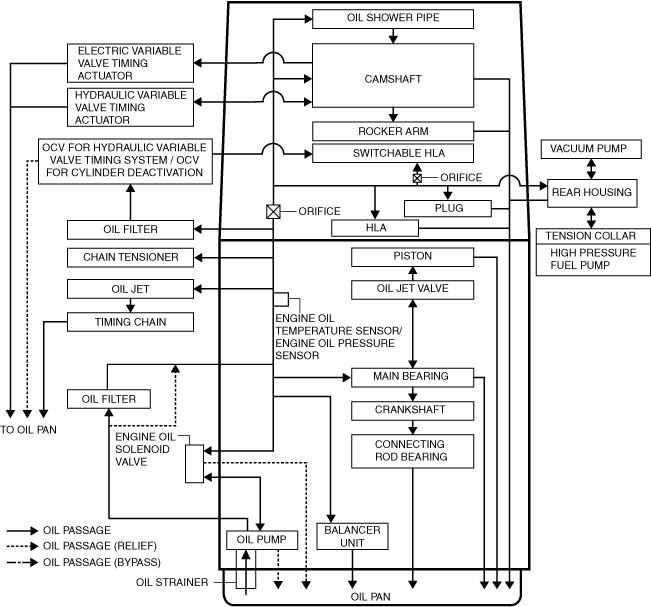

Flow View

ac5wzn00005445

Structure

•  Consists of the following parts:

Oil filter
(See OIL FILTER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil pan
(See OIL PAN [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil strainer
(See OIL STRAINER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil pump
(See OIL PUMP [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil jet valve
(See OIL JET VALVE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Engine oil solenoid valve
(See ENGINE OIL SOLENOID VALVE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Oil shower pipe
(See OIL SHOWER PIPE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
