OIL STRAINER [SKYACTIV-G 2.5T]
id0111q8002400
Purpose, Function
• The oil strainer suctions the engine oil in the oil pan using the vacuum occurring in the oil pump. At the same time, the engine oil is filtered by the internal filter which prevents intake of large foreign matter.

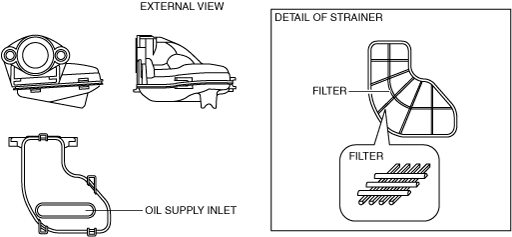

Construction
• The oil strainer is located at the oil pump inlet.
• The oil strainer has a filter in the inside.
