OIL COOLER [SKYACTIV-G 2.5T]
id0111q8101100
Purpose, Function
• The oil cooler routes engine oil and engine coolant through the interior and disperses the engine oil heat using the engine coolant. As a result, the oil temperature is maintained properly to reduce the engine oil deterioration.
Construction

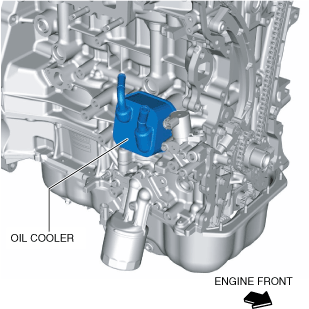

• The oil cooler is located on the right side of the engine block.
• A water-cooled, layer-type oil cooler has been adopted.
