Outline

• A coolant control valve has been adopted to improve fuel economy during low engine loads.

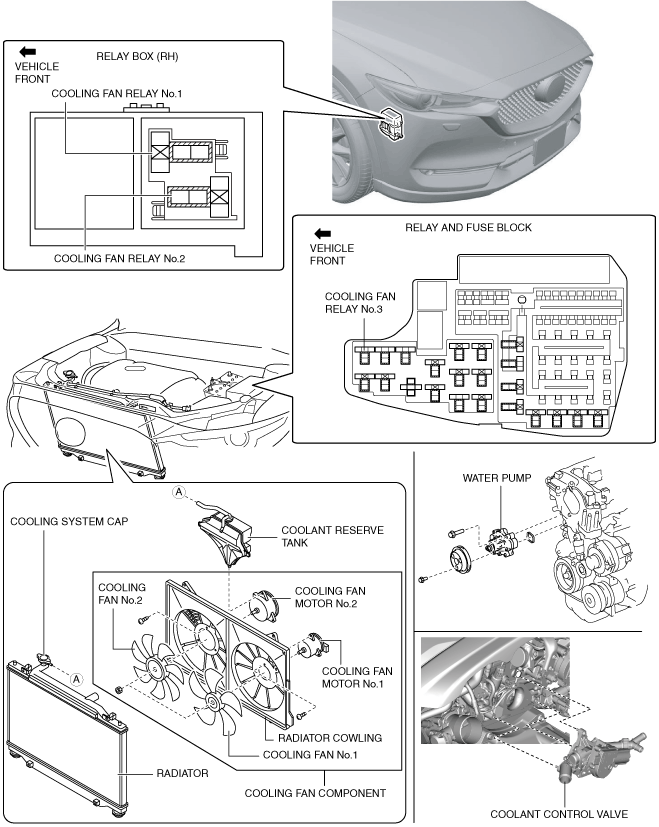

Structural View

ac5wzn00005126

Flow Chart

ac5wzn00004595

Structure

• Consists of the following parts:

Radiator

(See RADIATOR [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Cooling system cap

(See COOLING SYSTEM CAP [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Water pump

(See WATER PUMP [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Coolant control valve

(See COOLANT CONTROL VALVE [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Cooling fan component

(See COOLING FAN COMPONENT [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Cooling fan relay

(See COOLING FAN RELAY [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
