THERMOSTAT [SKYACTIV-D 2.2]
id0112s6003000
Fuel injector (2pin type)
Purpose, Function
-
• When the engine coolant temperature is low, the thermostat blocks the engine coolant passage between the radiator and engine. As a result, because engine coolant cycles without passing through the radiator, warming is promoted.
Construction
-

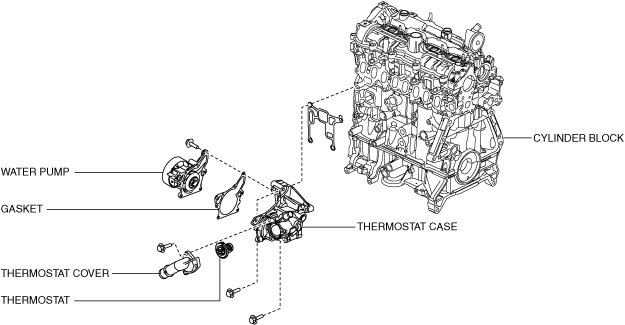

• The thermostat is installed to the thermostat case on the left front side of the engine.

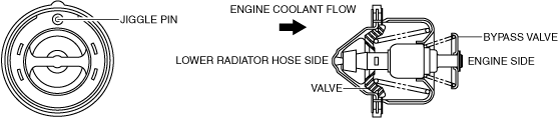

• The thermostat has the following parts:

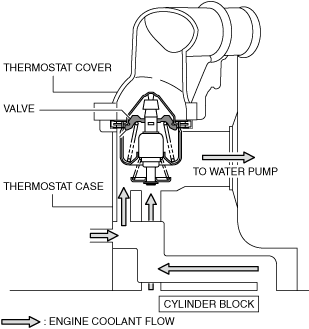

Operation
1. When the engine coolant temperature is low, the thermostat valve closes and engine coolant circulates without passing through the radiator.
2. When the engine coolant temperature is 80—84 °C {176—183 °F}, the thermostat valve starts to open and the engine coolant passed through the radiator flows to the engine.
