WATER PUMP [SKYACTIV-D 2.2]

id0112s6003100

Purpose, Function

• The water pump operates by obtaining drive force from the engine via the drive belt to pump engine coolant.

Construction

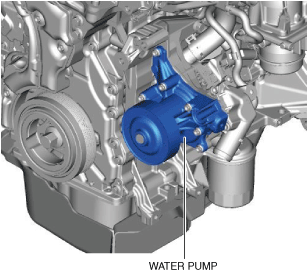

• The water pump is installed to the engine front.

ac8wzn00000116

• The water pump consists of the following parts:

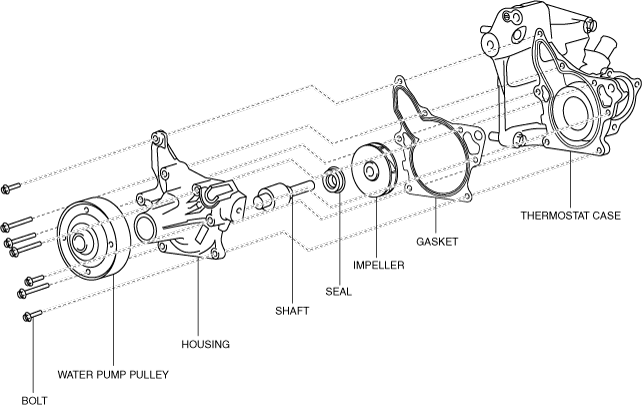

Fuel injector (2pin type)

ac5wzn00001847

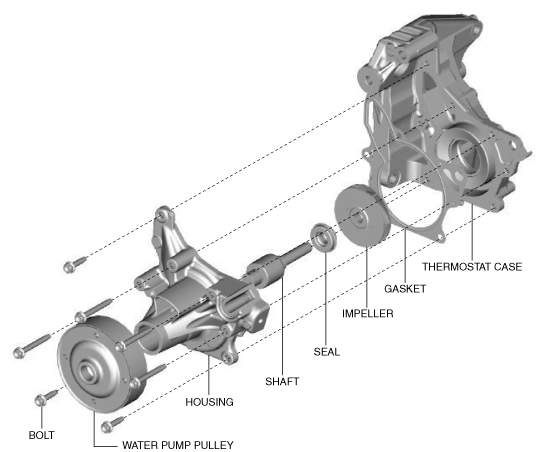

Fuel injector (6pin type)

ac5wzn00004989

• A hard plastic shroud impeller has been adopted to the impeller. As a result, leakage loss from the front and back surfaces of the impeller is reduced and the pump efficiency is improved.

ac5wzn00005108

Operation

1. The water pump pulley rotates by obtaining drive force from the engine via the drive belt.

2. The impeller with the water pump pulley and shaft connected rotates to pump engine coolant.
