COOLING FAN RELAY [SKYACTIV-D 2.2]


id0112s6158700


Purpose, Function

•  The cooling fan relay operates by receiving the signal from the PCM to supply power to the cooling fan motor.

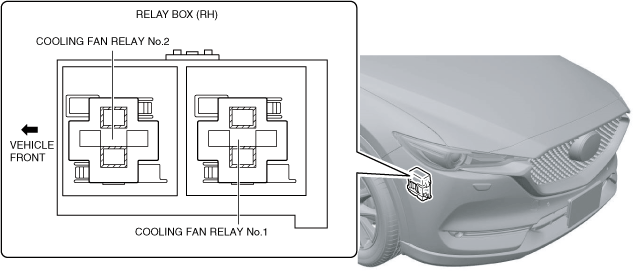

Construction

•  The cooling fan relay is installed on the relay and fuse block and relay box (RH).
ac5wzn00004987

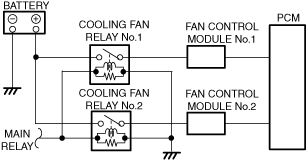

Operation

•  The contact point is on when the voltage is supplied to the coil based on the signal from the main relay, and the battery voltage is supplied to the fan control module.
ac5wzn00004988

Fail-safe

•  Function not equipped.
