INTAKE-AIR SYSTEM [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0113m1003300

Purpose, Outline

• A vacuum pump has been adopted which supplies stable vacuum to the power brake unit.

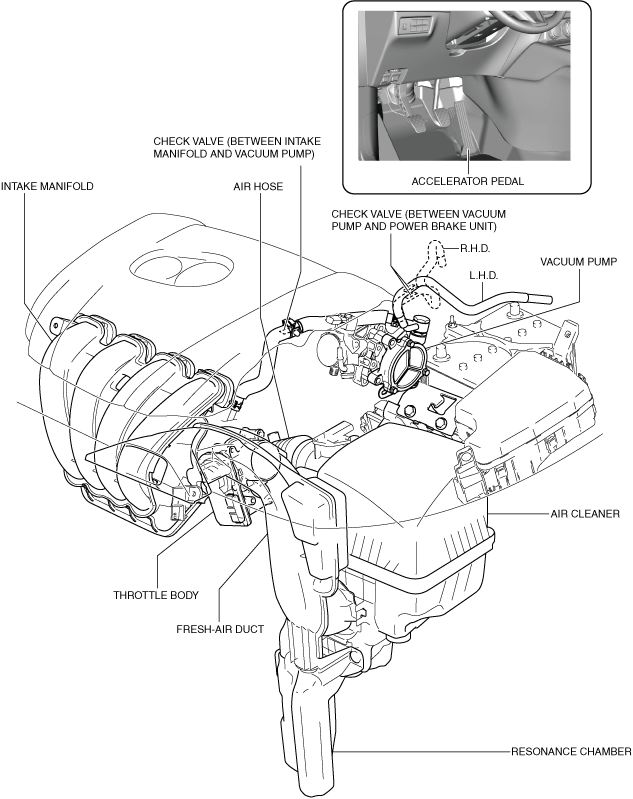

Structural View

ac5wzn00004046

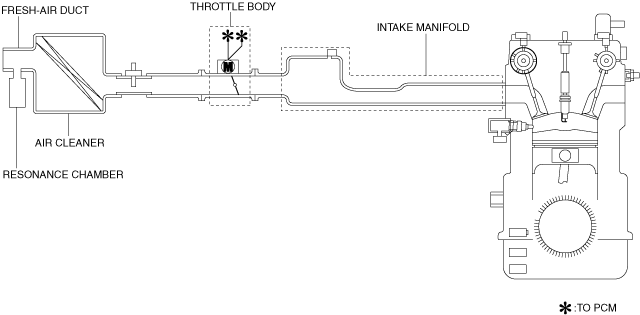

System Diagram

ac5wzn00001324

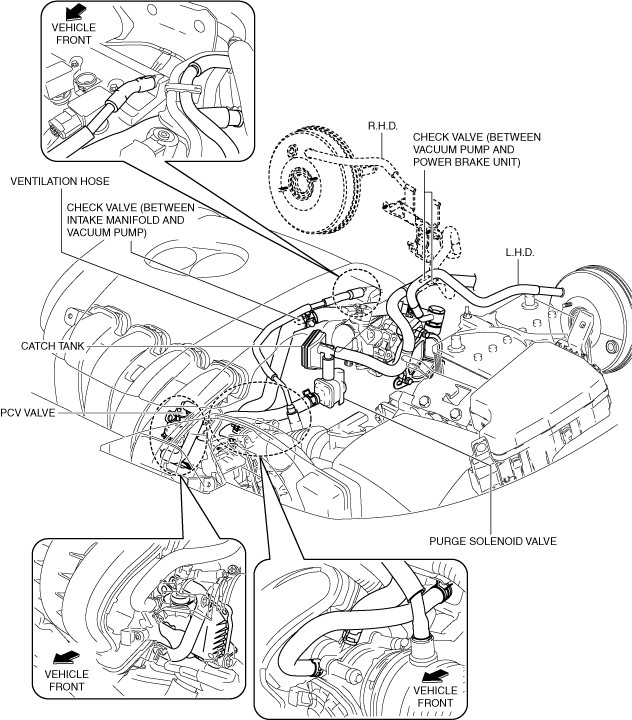

Vacuum Hose Routing Diagram

ac5wzn00004047

Structure

• The intake air system consists of the following parts:

Part name	Reference
Fresh-air duct	(See FRESH-AIR DUCT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Resonance chamber	(See RESONANCE CHAMBER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Air cleaner	(See AIR CLEANER [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Throttle body	(See THROTTLE BODY [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Intake manifold	(See INTAKE MANIFOLD [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
Accelerator pedal	(See ACCELERATOR PEDAL, KICKDOWN SWITCH [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)
