AIR CLEANER [WITH CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]


id0113m2003500


Purpose, Function

•  Prevents engine internal damage caused by penetration of dust or foreign material.

Construction

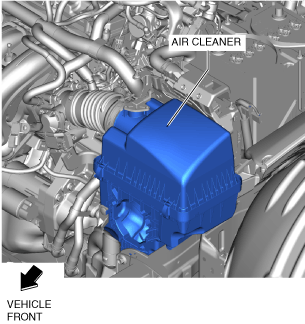

•  The air cleaner is installed in front of the battery.
ac5wzn00004496

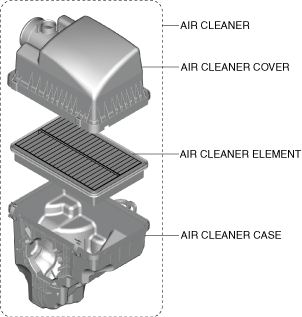

•  The air cleaner consists of the air cleaner case, air cleaner cover, and air cleaner element.
ac5wzn00004497
•  Non-woven fabric (dry type) air cleaner element has been adopted to remove dust and foreign material in the intake air.
ac5wzn00004498
