•  The intake manifold distributes intake air to each cylinder evenly.

•  The shape and length are designed so that fresh air is introduced to each cylinder according to the engine conditions. As a result, an optimum combustion efficiency has been achieved.

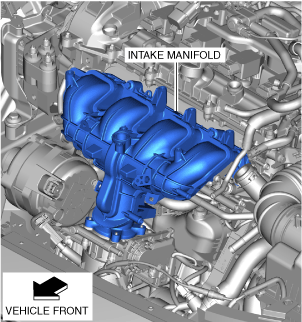

•  The intake manifold is located on the cylinder head.

ac9uun00002735

•  Plastic material has been adopted for fine formation and weight reduction.
