REGULATING SOLENOID VALVE [SKYACTIV-D 2.2]

id0113z7265100

Fuel injector (2pin type)

Purpose, Function

•  Vacuum generated by the vacuum pump operation is introduced to the regulating valve actuator.

•  The regulating valve opens according to the control signal from the PCM.

Construction

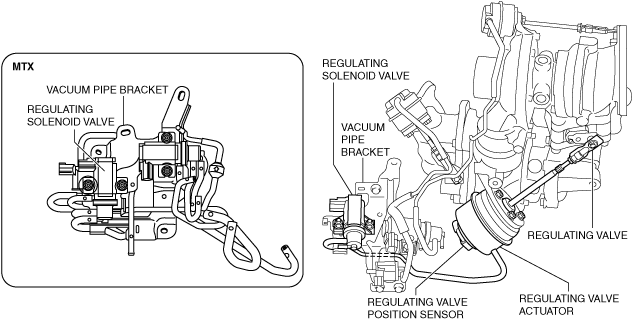

•  The regulating solenoid valve is installed to the vacuum pipe bracket on the side of the turbocharger.

ac5wzn00005339

•  The regulating solenoid valve consists of a coil, spring, and plunger.

Operation

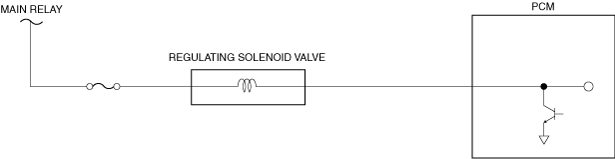

•  According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the regulating solenoid valve.

ac5wzn00002193

•  Vacuum generated by the vacuum pump operation is introduced to the regulating valve actuator by the opening of the regulating solenoid valve.

Fail-safe
