COMPRESSOR BYPASS SOLENOID VALVE [SKYACTIV-D 2.2]

id0113z7265200

Purpose, Function

• Vacuum generated by the vacuum pump operation is introduced to the compressor bypass valve actuator.

• The compressor bypass valve opens according to the control signal from the PCM.

Construction

Fuel injector (2pin type)

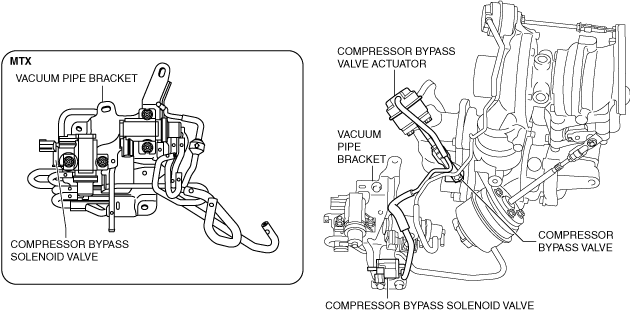

• The compressor bypass solenoid valve is installed to the vacuum pipe bracket on the side of the turbocharger.

ac5wzn00005338

• The compressor bypass solenoid valve consists of a coil, spring, and plunger.

ac5wzn00002190

Fuel injector (6pin type)

• The compressor bypass solenoid valve is installed to the vacuum pipe bracket on the side of the turbocharger.

ac8wzn00000139

• The compressor bypass solenoid valve consists of a coil, spring, and plunger.

ac8wzn00000140

Operation

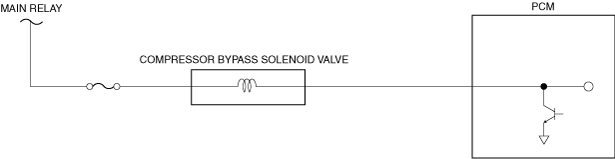

• According to the control signal from the PCM, the coil is energized and the plunger is operated to open/close the compressor bypass solenoid valve.

ac5wzn00002191

• Vacuum generated by the vacuum pump operation is introduced to the compressor bypass valve actuator by the opening of the compressor bypass solenoid valve.

Fail-safe

DTC

Fail-safe

P0034:00

P0035:00

•  Limits the engine torque/limits the maximum engine speed.

•  Inhibits the automatic diesel particulate filter regeneration control.

•  Inhibits the manual diesel particulate filter regeneration control.

•  Inhibits the boost control.

•  Inhibits the EGR control.

•  Stops the G-vectoring control (GVC).

•  Limits the engine transaxle total control.
