CHECK VALVE [SKYACTIV-D 2.2]

id0113z7266200

Purpose, Function

• Prevents flow-back of the vacuum generated in the vacuum chamber. (Fuel injector (2pin type))

• Prevents flow-back of the vacuum generated by the vacuum pump operation. (Fuel injector (6pin type))

Construction

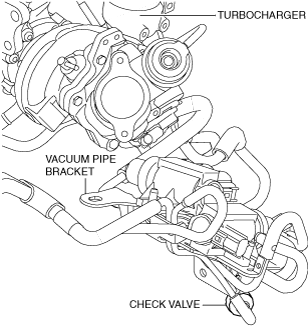

• The check valve is installed to the vacuum pipe bracket on the side of the turbocharger. (Fuel injector (2pin type))

ac5wzn00005340

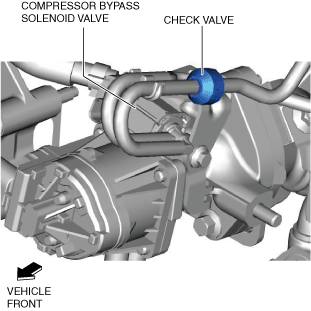

• The check valve is installed to the vacuum hose near the compressor bypass solenoid valve. (Fuel injector (6pin type))

ac8wzn00000142

• The check valve consists of the body, cover, and umbrella seal.

ac5wzn00002195

• A one-way valve is integrated in the check valve.

Operation

Fuel injector (2pin type)

• The one-way valve is opened by the vacuum generated from the vacuum pump operation to introduce vacuum to the vacuum chamber.

ac5wzn00002196

• Pressure from the vacuum chamber does not leak because of the one-way valve effect.

Fuel injector (6pin type)

• The one-way valve is opened by the vacuum generated from the vacuum pump operation to introduce vacuum to the compressor bypass solenoid valve side.

ac8wzn00000144
