CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7705900

Replacement Part

O-ring

Quantity: 1

Location of use: Charge air cooler air outlet pipe
O-ring

Quantity: 1

Location of use: Charge air cooler air inlet pipe

Oil and Chemical Type

Engine oil

Type: Recommended oil

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the front under cover No.1. (See FRONT UNDER COVER No.1 REMOVAL/INSTALLATION.)

4.  Remove the boost air temperature sensor. (See BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5.  Remove in the order shown in the figure.

6.  Install in the reverse order of removal.

Fuel injector (2pin type)

ac5wzw00011364

1
Charge air cooler outlet pipe
2
Charge air cooler inlet pipe
(See Charge Air Cooler Inlet Pipe Installation Note.)
3
Charge air cooler
(See Charge Air Cooler Installation Note.)
4
Protector

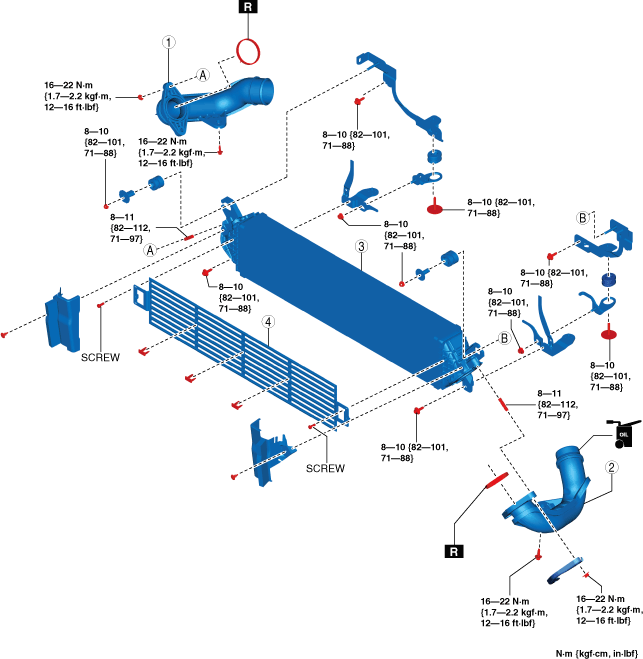

Fuel injector (6pin type)

ac5wzw00012051

1
Charge air cooler outlet pipe
2
Charge air cooler inlet pipe
(See Charge Air Cooler Inlet Pipe Installation Note.)
3
Charge air cooler
(See Charge Air Cooler Installation Note.)
4
Protector


Charge Air Cooler Installation Note

1.  Remove foreign matter on the O-ring seal surface of charge air cooler and in the pipe furrow O-ring (sand or dust).

ac5wzw00006729

Note
•  The color is different between the O-ring on the charge air cooler outlet pipe side and the O-ring on the charge air cooler inlet pipe side. Verify the color before installing the O-ring.

2.  Align the O-ring projection with the pipe furrow and install the O-ring.

ac5wzw00006730

Color of O-ring
Charge air cooler outlet pipe side: Blue color
Charge air cooler inlet pipe side: Black color

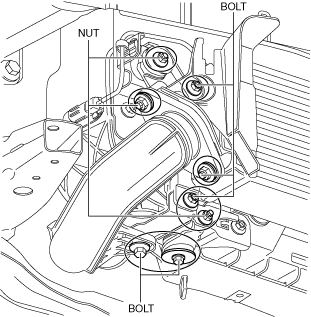

3.  Temporarily install the bolts and nuts shown in the diagram.

ac5wzw00005696

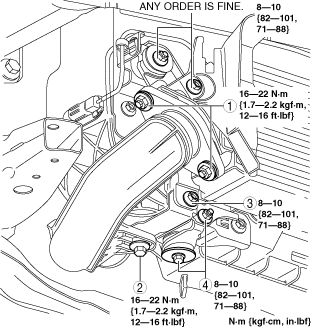

4.  Tighten the charge air cooler in the order shown in the figure.

ac5wzw00005697


Charge Air Cooler Inlet Pipe Installation Note

1.  Clean the seal surface and furrow area of the charge air cooler air inlet pipe.

ac5wzw00006724

2.  Degrease the seal surface of the pipe, and verify if there is foreign matter penetration or scratches.

•  If there is foreign matter penetration or scratches, replace the pipe.

3.  Apply engine oil to the seal surface of the pipe.

Note

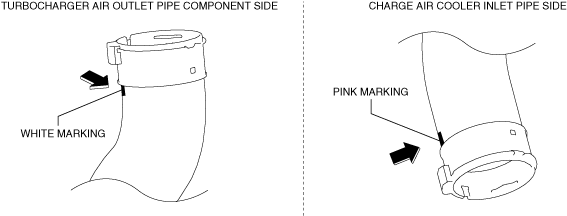

•  Make sure that the installation direction of the charge air cooler hose is correct and verify the marking shown in the figures.
ac5wzw00006725

4.  Align the pipe rib and connector groove positions, and install.

ac5wzw00006726

5.  Insert the pipe connector completely into the connector.

ac5wzw00006727

6.  Pull the pipe outward and verify that a click sound is heard.

ac5wzw00006728
