CHARGE AIR COOLER [SKYACTIV-D 2.2]

id0113z7706800

Purpose, Function

• Cools the intake air which is compressed and heated by the turbocharger.

Construction

• The charge air cooler is installed to the backside of the front bumper.

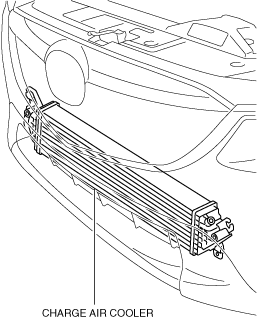

Fuel injector (2pin type)

ac5wzn00002893

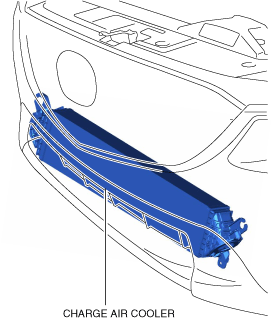

Fuel injector (6pin type)

ac8wzn00000161

Operation

• The charge air cooler cools the intake air which is compressed and heated by the turbochargers to concentrate the air density of the intake air.

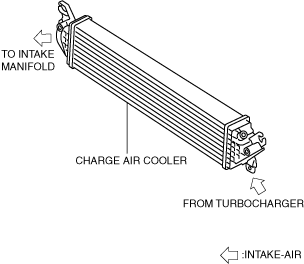

Fuel injector (2pin type)

ac5wzn00002219

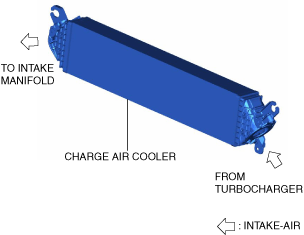

Fuel injector (6pin type)

ac8wzn00000162
