FUEL PUMP UNIT [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)]

id0114m1103600

Purpose, Function

• Supplies fuel in the fuel tank to the high pressure fuel pump.

• Based on the control signal from the PCM, the fuel pump operates by the operation of the fuel pump relay and the fuel pump control module.

Construction

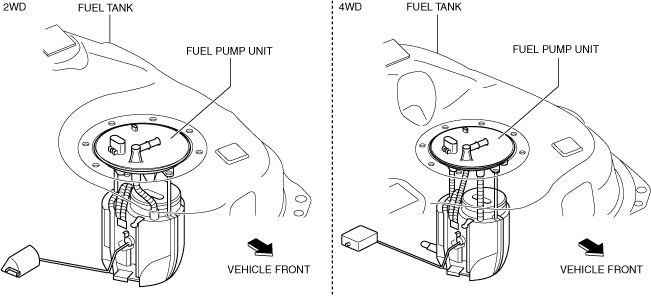

• The fuel pump unit is installed to the fuel tank.

ac5wzn00003842

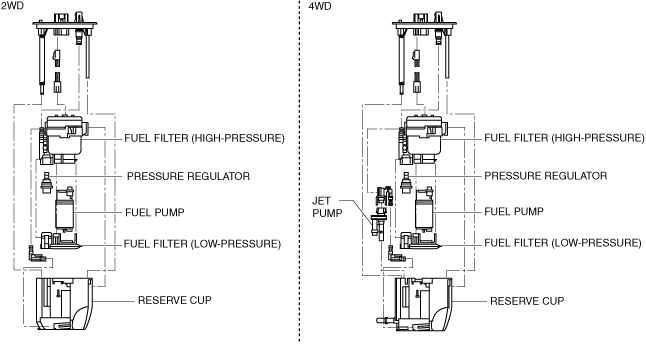

• The fuel pump unit consists of a fuel pump, fuel filter (low-pressure) fuel filter (high-pressure), pressure regulator, jet pump (4WD) and reserve cup.

ac5wzn00003843

Operation

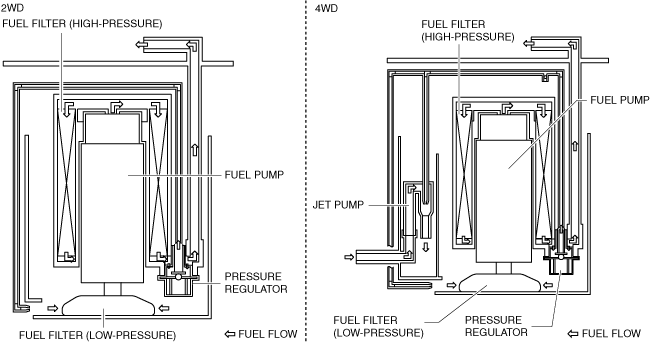

• Based on the control signal from the PCM, the fuel pump suctions fuel in the lower cover and pumps it to the high pressure fuel pump. After fuel is sufficiently filtered through the fuel filter (low-pressure) and fuel filter (high-pressure), fuel pressure is adjusted to approx. 430 kPa {4.38 kgf/cm², 62.4 psi} by the pressure regulator.

ac5wzn00003844

4WD

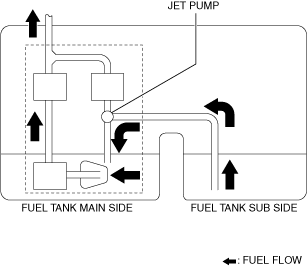

• Positions the venturi pipe in the return path from the pressure regulator and sends fuel from the fuel tank sub side to the main side using vacuum generated in that area.

ac5wzn00002228

• For fuel pump control details, refer to CONTROL SYSTEM. (See FUEL PUMP CONTROL [WITHOUT CYLINDER DEACTIVATION (SKYACTIV-G 2.0, SKYACTIV-G 2.5)].)

Fail-safe

• Function not equipped.
